Order #: U2066XA
Mfg #: U2066XA

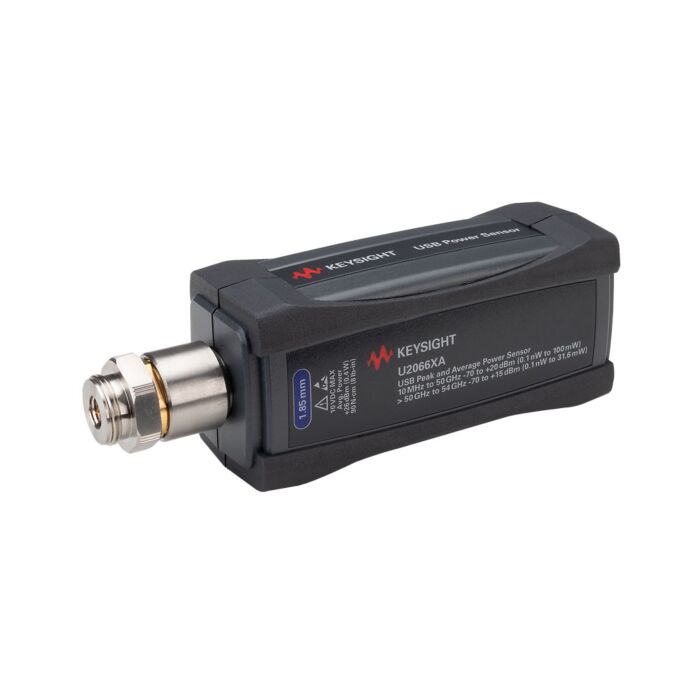

Keysight U2066XA USB Wide Dynamic Range Peak & Average Power Sensor, 10MHz-54GHz
Order #: U2066XA
Mfg #: U2066XA
Product Highlights
- Frequency range of 10 MHz - 54 GHz
- USB connectivity with a wide dynamic range of -70 to +20 dBm (frequency 10 MHz to 50 GHz) / -70 to +15 dBm (frequency > 50 GHz to 54 GHz) for small signal measurements
- 5 MHz video bandwidth and single shot real-time capture at 20 Msample/sec per second
- Variable Sampling Rate 1M samples/sec and Long Memory 1M samples data storage
- Fast real-time measurement of 50,000 readings/sec
- Real-time measurement with zero dead time to ensure every single continuous pulse is measured
- Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements
- Internal zero and automatic calibration saves time and reduces measurement uncertainty
- A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences
Accurately measure any modulated signal with the Keysight Technologies, Inc. U/L2050/60 X-Series wide dynamic range power sensors. The USB/LAN connectivity models come with a wide dynamic range, covering -70 to +26 dBm. This sensor offers very accurate and repeatable power measurements for any modulated signal and comes with a super-fast measurement speed of 50,000 readings/sec, which enables higher manufacturing throughput. Users can also save time and reduce measurement uncertainty with the internal zero and calibration function. The U/L2050/60 X-Series is supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform average power measurement and analysis.
- Keysight U2066XA-0B1 English language user guide; printedEnglish language user guide; printed
Order #: U2066XA-0B1
Mfg #: U2066XA-0B1
Availability: Ships in 4-6 weeks$73.83 - Keysight U2066XA-0BF English language programming guide; printedEnglish language programming guide; printed
Order #: U2066XA-0BF
Mfg #: U2066XA-0BF
Availability: Ships in 4-6 weeks$78.93 - Keysight U2066XA-0BN English language service guide; printedEnglish language service guide; printed
Order #: U2066XA-0BN
Mfg #: U2066XA-0BN
Availability: Ships in 4-6 weeks$156.00 - Keysight U2066XA-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)Calibration + Uncertainties + Guardbanding (Not Accredited)
Order #: U2066XA-1A7
Mfg #: U2066XA-1A7
Availability: Ships in 4-6 weeks$697.00 - Keysight U2066XA-A6J ANSI Z540-1-1994 CalibrationANSI Z540-1-1994 Calibration
Order #: U2066XA-A6J
Mfg #: U2066XA-A6J
Availability: Ships in 4-6 weeks$697.00 - Keysight U2066XA-UK6 Commercial calibration certificate with test dataCommercial calibration certificate with test data
Order #: U2066XA-UK6
Mfg #: U2066XA-UK6
Availability: Ships in 4-6 weeks$369.00
