Fluke 1674FC/1630 Installation Tester with Earth Ground Clamp Meter

Product Highlights

The Fluke 1674 FC Multifunction Installation Tester with Fluke 1630-2 FC Earth Ground Clamp bundle will revolutionize the way you work. With an ergonomic design, seamless user interface, integrated data management capabilities, wireless connectivity, and comprehensive reporting software, the 1674 FC sets the new standard for an integrated installation testing solution

• Quickly and easily setup your installation tester via the integrated color touch screen, or your PC.
• Programmable Auto Tests allow you to run an entire automatic installation test sequence at the touch of a button.
• Future proof your business with advanced Surge Protection & Insulation monitoring device (SPD & IMD) testing features.
• Easily generate inspection certificates onsite, with a few simple steps, allowing you to finalize and invoice your inspection at the time of service.
• Loop and line impedance (ZI): 0.01 Ohm
• Insulation resistance measurement (RISO): 1000 MOhm @ 1000V
• Continuity testing (RLO): 0.01 Ohm @ 200 mA

Fluke 1630-2 Earth Ground Loop and leakage Clamp, 1000V

• Logging Measurements - Save time by automatically recording data at pre-set intervals. Save up to 32,760 measurements in memory at the set logging interval.
• Alarm Threshold - User-defined high / low alarm limits, for rapid measurement evaluation.
• Band-Pass Filter - Selectable band-pass filter function removes unwanted noise from the ac leakage current measurement.
• Warranty - One year
• Identify ac leakage currents without disconnecting the earth ground stake from the grounding system - ideal for system troubleshooting.
• New, rugged jaw design stays in alignment and in calibration even in every day, on-the-job industrial environments
• Protect valuable equipment
• Perform tests without driving auxiliary test stakes into the ground
• Save and share data via Fluke Connect wireless test system

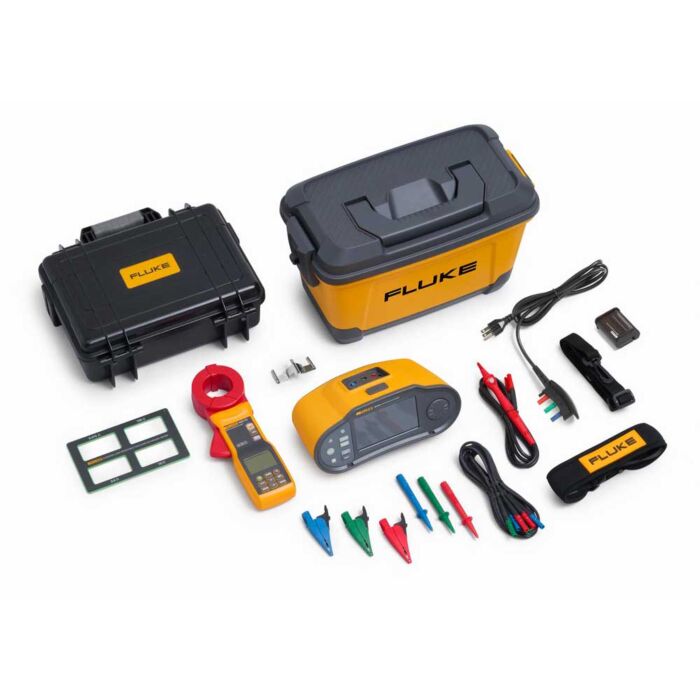

Each Unit Includes

• 1630-2 Earth Ground Loop and leakage Clamp, 1000V
• Lithium Ion Battery Pack
• Hard carrying case
• Zero adapter
• Heavy duty mains cord
• Standard test lead set
• Padded carrying strap
