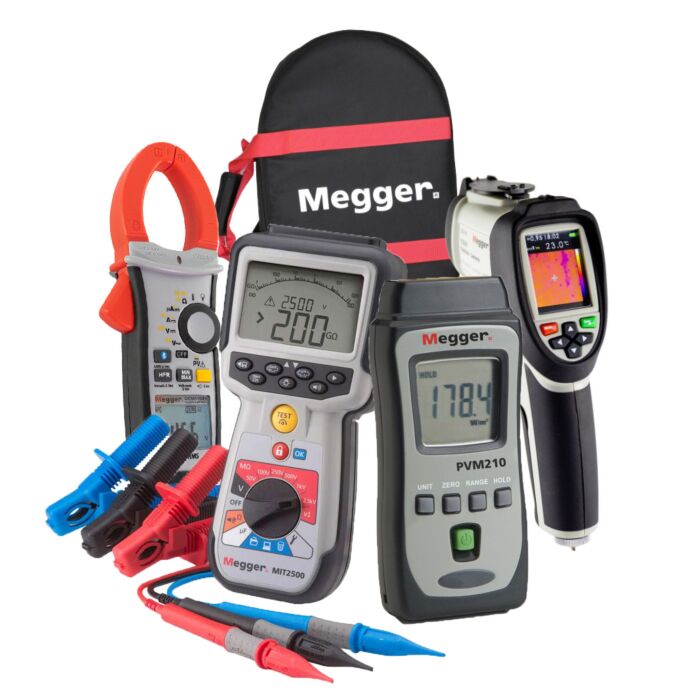

Megger Solar PV Kit with IR Gun, Clamp Meter, Backpack, Irradiance Meter and Insulation Tester

Product Highlights

MIT2500 Insulation Tester

• Designed for Motor and Cable Testing, Specialist Applications and Electrical Testing Markets
• Insulation Testing to 2.50 Kv (New)
• 200 GΩ Measurement Range at ≥ 1.00kv
• Guard Terminal for Testing of Equipment With High Surface Leakage Issues
• Stabilized Insulation Test Voltage to -0% +2% +/-2V
• Variable Insulation Test Voltage from 50V to 999 V in 1V Steps
• Variable Insulation Test Voltage from 1.00 Kv to 2.50kv in 10V Steps
• Single Range, Fast Continuity Testing from 0.01Ω to 1MΩ
• 0.01mv to 600V TRMS AC and DC Voltage Measurement
• Test Result Storage and Bluetooth Downloading
• Live Circuit Detection and Protection
• CATIV 600V Applications & IP54 Environmental Protection
• Rechargeable Options for Mains and Car Charging

DCM1500S Solar PV Clamp Meter

• 2000 V DC
• TRMS 1500 V AC
• 1500 A AC/DC Smart Hold
• Auto ranging
• MIN/MAX Hold
• Inrush Current

PVM210 Irradiance Meter

• The Megger PVM210 provides the solar / photovoltaic engineer a compact, pocket size instrument that is easy to use.
• Optimal incident angle and positioning of solar panels
• Measurement of solar power for panel short circuit calculation
• 3¾ digit LCD display with 1999 W/m² range
• Single handed use
• Mini pocket size
• Standard camera mount fixing for accurate placement

TC3231 Thermal Camera

• 2.2 inch (55.88 mm) 320 x 240 TFT LCD display
• 32 x 31 pixel resolution IR temperature measurement
• Measurement range -20 ° to 300 °C / -4 °F to 572 °F
• Adjustable emissivity
• Micro SD memory for storing up to 6000 images
• High and low alarm (enable and disable)
• Selectable color palette
• Image blending with selectable distance of 0.5 m, 1 m, 2 m, or 3 m
