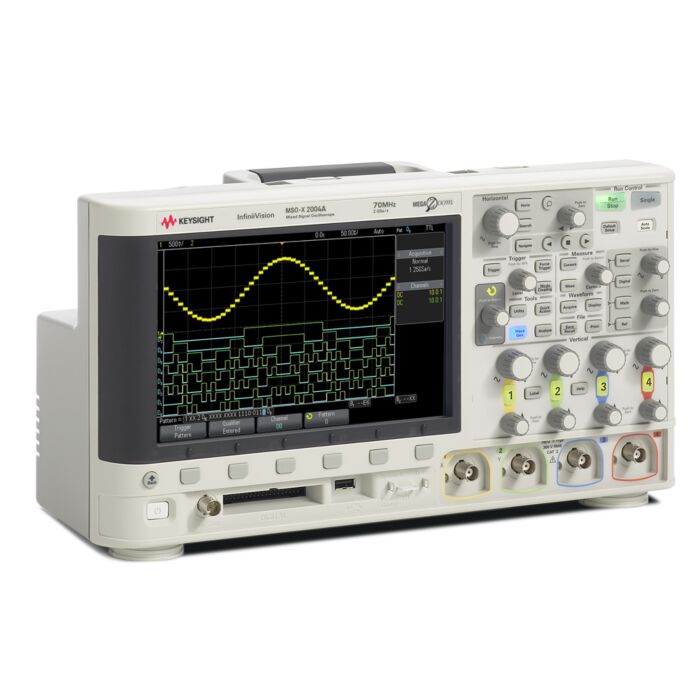

Keysight MSOX2004A Oscilloscope, Mixed Signal, 70MHz 4+8-Channel

Oscilloscope,Mixed Signal,70MHz 4+8-Channel

Order #: MSOX2004A

Mfg #: MSOX2004A

$5,303.00

Availability: Ships in 4-6 weeks

New Purchase Calibration

None

Calibration without Data + $628.34

Calibration with Data + $834.72

Accredited Calibration with Data and Uncertainties + $999.84

Add Calibration

Qty

This product is available for shipping to the United States and Canada only.

Faster update rate: Improving update rate from 50,000 to 200,000 wfm/s
More memory: 10x more memory depth and standard segmented memory (DSOX2MEMUP+DSOX2SGM, $500+ value)
Additional trigger conditions: Adding all advanced hardware triggers from 3000 X- Series, including: Edge then Edge, Runt, Setup and Hold, Rise/Fall Time, Nth Edge Burst and Or triggers
Advanced math functions: Adding all advanced math functions from 3000 X- Series, including: Ax + B, Square, Absolute Value, Log, Log(e), Exponential, Exp(10), LPF, HPF, Magnify, Measurement Trend, Logic Bus Chart
High resolution 8.5-inch display
Up to 50,000 wfms/s update rate
Fast, responsive MegaZoom IV deep memory, 100 kpts
Best–in-class oscilloscope
Integrated 8-channel mixed signal oscilloscope (MSO)
Industry-exclusive WaveGen built-in function generator (optional)
Upgradable bandwidth
Upgradable WaveGen built-in function generator
Upgradable measurement applications
Bandwidth: 70 MHz
Channels: 4 analog channels +8 digital channels
Sample rate Up to 2 GSa/s
Memory 100 kpts
Display 8.5-inch WVGA (800 x 480)
Update rate 50,000 wfms/s
Upgradable Bandwidth, MSO, measurement applications and WaveGen
Warranty Standard 3-year
Connectivity USB host (one front, one back), USB device, LAN (optional), GPIB (optional)
2-year calibration cycle

Standard 5-year warranty (90 days for unserialized accessories)
Standard secure erase
One N2862B 150 MHz 10:1 passive probe per channel
N2755-60001 8-channel logic probe and accessory kit
Built-in help language support for English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese and Italian
Certificate of Calibration
Documentation CD
Interface language support GUI menus: English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese, Thai, Polish and Italian
Localized power cord
Includes BV0004B Oscilloscope app

Keysight N2783B Current Probe 30A AC/DC, 100MHz
Current Probe 30A AC/DC,100MHz

Order #: N2783B

Mfg #: N2783B

Availability: Ships in 4-6 weeks

$6,718.00

Qty
Keysight 10070D Passive Probe, 20MHz, 1:1
Passive Probe,20MHz,1:1

Order #: 10070D

Mfg #: 10070D

Availability: Ships in 4-6 weeks

$423.00

Qty

Bandwidth	70 MHz
Bandwidth Upgrades	Available
Channels	4 + 8
Max Memory Depth	1 Mpts
Max Sample Rate	2 GSa/s
Display Size	8.5 inch
Waveform Update Rate	50,000 wfms/s
ADC Bits	8 bits
Built-In Instruments (Optional)	20 MHz Func Gen 5-digit Counter 3-digit DVM
Protocol Trigger & Decodes	Optional
Operating System	Embedded
Real-Time	Yes
