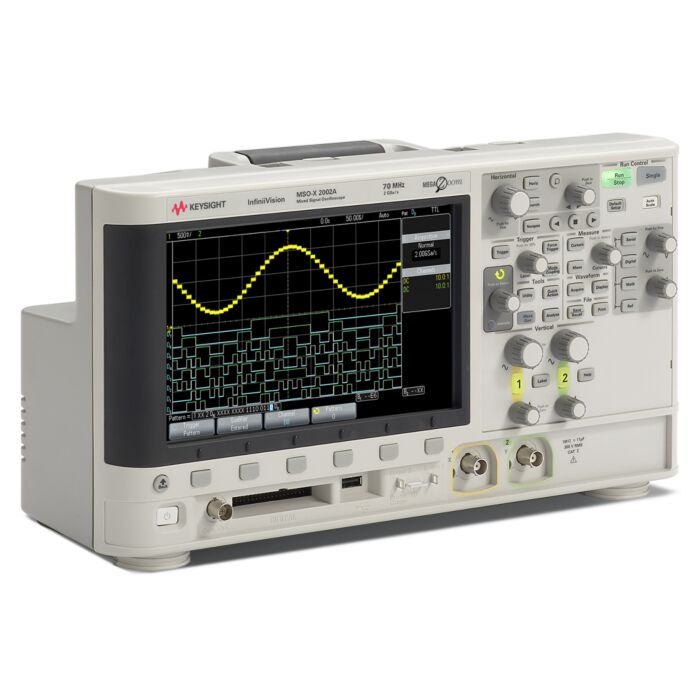

Keysight MSOX2002A Oscilloscope, Mixed Signal, 70MHz 2+8-Channel
Oscilloscope,Mixed Signal,70MHz 2+8-Channel
Order #: MSOX2002A
Mfg #: MSOX2002A
$3,973.00
Keysight MSOX2002A Oscilloscope, Mixed Signal, 70MHz 2+8-Channel
Oscilloscope,Mixed Signal,70MHz 2+8-Channel
Order #: MSOX2002A
Mfg #: MSOX2002A
$3,973.00
Availability: Ships in 4-6 weeks
Product Highlights
- Faster update rate: Improving update rate from 50,000 to 200,000 wfm/s
- More memory: 10x more memory depth and standard segmented memory (DSOX2MEMUP+DSOX2SGM, $500+ value)
- Additional trigger conditions: Adding all advanced hardware triggers from 3000 X- Series, including: Edge then Edge, Runt, Setup and Hold, Rise/Fall Time, Nth Edge Burst and Or triggers
- Advanced math functions: Adding all advanced math functions from 3000 X- Series, including: Ax + B, Square, Absolute Value, Log, Log(e), Exponential, Exp(10), LPF, HPF, Magnify, Measurement Trend, Logic Bus Chart
- Bandwidth: 70 MHz
- Channels: 2 analog channels +8 digital channels
- High resolution 8.5-inch display
- Up to 50,000 wfms/s update rate
- Fast, responsive MegaZoom IV deep memory, 100 kpts
- Best–in-class oscilloscope
- Integrated 8-channel mixed signal oscilloscope (MSO)
- Industry-exclusive WaveGen built-in function generator (optional)
- Upgradable bandwidth
- Upgradable WaveGen built-in function generator
- Upgradable measurement applications
- Sample rate Up to 2 GSa/s
- Memory 100 kpts
- Display 8.5-inch WVGA (800 x 480)
- Update rate 50,000 wfms/s
- Upgradable Bandwidth, MSO, measurement applications and WaveGen
- Warranty Standard 3-year
- Connectivity USB host (one front, one back), USB device, LAN (optional), GPIB (optional)
- 2-year calibration cycle
Each Unit Includes
- Standard 5-year warranty (90 days for unserialized accessories)
- Standard secure erase
- One N2862B 150 MHz 10:1 passive probe per channel
- N2755-60001 8-channel logic probe and accessory kit
- Built-in help language support for English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese and Italian
- Certificate of Calibration
- Documentation CD
- Interface language support GUI menus: English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese, Thai, Polish and Italian
- Localized power cord
- Includes BV0004B Oscilloscope app
- Keysight N2783B Current Probe 30A AC/DC, 100MHzCurrent Probe 30A AC/DC,100MHz
Order #: N2783B
Mfg #: N2783B
Availability: Ships in 4-6 weeks$6,718.00 - Keysight 10070D Passive Probe, 20MHz, 1:1Passive Probe,20MHz,1:1
Order #: 10070D
Mfg #: 10070D
Availability: Ships in 4-6 weeks$423.00
Bandwidth | 70 MHz |
---|---|
Bandwidth Upgrades | Available |
Channels | 2 + 8 |
Max Memory Depth | 1 Mpts |
Max Sample Rate | 2 GSa/s |
Display Size | 8.5 inch |
Waveform Update Rate | 50,000 wfms/s |
ADC Bits | 8 bits |
Built-In Instruments (Optional) |
|
Protocol Trigger & Decodes | Optional |
Operating System | Embedded |
