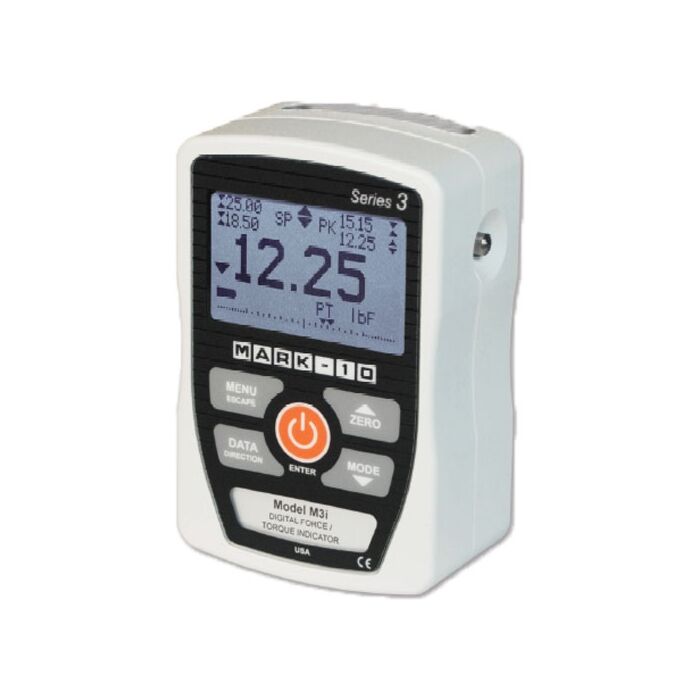

Mark-10 M3I Basic Force/Torque Indicator 110V
Basic Force/Torque Indicator 110V
Order #: M3I
Mfg #: M3I
Special Price
$961.87
Regular Price
$1,012.50
Mark-10 M3I Basic Force/Torque Indicator 110V
Basic Force/Torque Indicator 110V
Order #: M3I
Mfg #: M3I
Special Price
$961.87
Regular Price
$1,012.50
The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test™ technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators.
Availability:
In stock
Product Highlights
- Interchangeable force and torque sensors through Plug & Test™ technology (sensors are sold separately)
- High-speed 2,000 Hz sampling rate
- Ultra-compact size
- Large backlit graphic display
- Programmable set points with pass/fail indicators
- Live load bar graph with set point markers
- Peak readings and set points always displayed
- Configurable audio alarms and key tones
- Programmable auto-shutoff
- Configurable audio alarms and key tones
- Battery or AC operation
- MESUR™ Lite data collection software included
- CE mark
- Accuracy: ±0.2% of full scale + sensor
- Sampling rate: 2,000 Hz
- Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
- Battery life: Backlight on: up to 7 hours of continuous use
- Backlight off: up to 24 hours of continuous use
- Measurement units: lbF, ozF, gF, kgF, N, kN, mN (depending on model)
- USB Output: Configurable to 115,200 baud
- Configurable settings: Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
- Safe overload: 150% of full scale (display shows “OVER” at 110% and above)
- Weight: 0.7 lb (0.3 kg)
- Warranty: 3 years (see individual statement for further details)
Each Unit Includes
- Carrying case
- Universal voltage AC adapter
- Battery
- Quick-start guide
- USB cable
- Resource CD (USB driver, MESUR™ Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide)
- Certificate of conformance.
