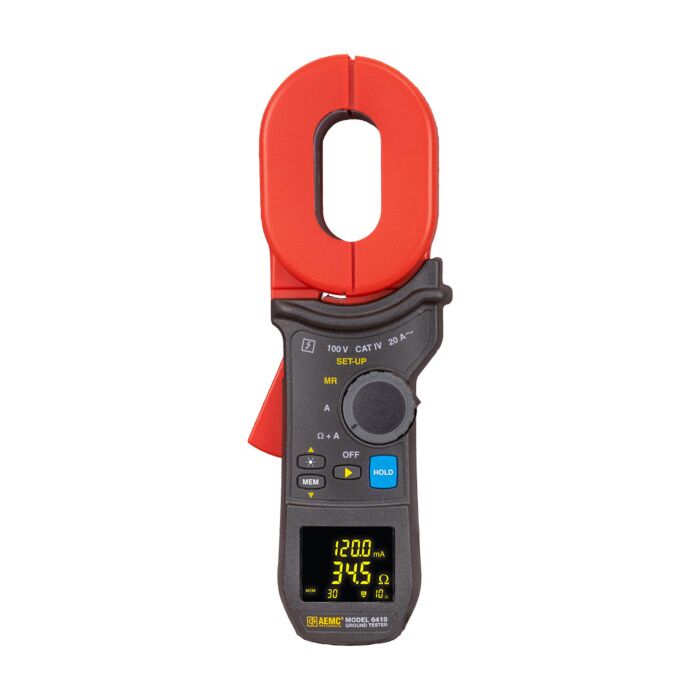

AEMC Instruments 6418 Ground Resistance Tester
Ground Resistance Tester
Order #: 6418
Mfg #: 2141.03
Special Price
$2,367.40
Regular Price
$2,492.00
AEMC Instruments 6418 Ground Resistance Tester
Ground Resistance Tester
Order #: 6418
Mfg #: 2141.03
Special Price
$2,367.40
Regular Price
$2,492.00
Availability:
In stock
The Ground Resistance Tester Model 6418 measures ground rod, busbar, and grid resistance and impedance without the use of auxiliary rods. Clamp-on ground resistance testers can be used in multi-grounded systems without disconnecting or de-energizing the ground system under test. The Model 6418 simply clamps around the grounding electrode or conductor and measures the resistance to ground. By performing measurements on intact ground systems, the user also verifies the quality of the grounding connections and bonds. Resistance and continuity of grounding loops around pads and buildings may also be measured.
Product Highlights
- Ground Integrity® Measurement
- Large multi-function bright yellow organic LED display (OLED) 48 x 39mm
- Clamping diameter accommodates both cable and bus bar
- Storage of measurements (Ω and/or A, with time-stamping)
- Up to 300 measurements stored
- View stored measurements on the OLED display
- Auto Power OFF function
- Auto Hold
- Alarm function with adjustable set point and buzzer for quick field checks for amps and ohms
- Rugged Lexan® head and body construction resists breakage
- Alarm settings stored memory information saved during shutdown
- Noise icon and buzzer alert user to presence of dangerous current levels/li>
- Designed to EN 61010-1, 100V CAT IV 150V CATIII safety standards
- Automatic calibration of the jaw gap at power-up
Each Unit Includes
- Hard carrying case
- 5 Ω calibration loop
- (4) 1.5 V AA batteries
- wrist strap
- user manual
| Ground Resistance Measurement | ||
| Measurement Range | Resolution | Accuracy |
| 0.010 to 0.099Ω | 0.001Ω | ±(1.5%Reading +0.01Ω) |
| 0.10 to 0.99Ω | 0.01Ω | ±(1.5%Reading +0.02Ω) |
| 1 to 49.9Ω | 0.1Ω | ±(1.5% Reading +0.1Ω) |
| 50.0 to 149Ω | 1Ω | ±(2.5% Reading +2Ω) |
| 150 to 245Ω | 5Ω | ±(5% Reading +10Ω) |
| 250 to 440Ω | 10Ω | ±(10% Reading +20Ω) |
| 450 to 640Ω | 10Ω | ±(15% Reading +20Ω) |
| 650 to 1200Ω | 50Ω | ±(20% Reading +100Ω) |
| Test Frequency | 2083Hz | |
| Maximum Overload | Permanent current: 100 max. 50/60Hz; 20A at 800Hz | |
| Current Measurement Range (Auto-Ranging) | ||
| Measurement Range | Resolution | Accuracy |
| 0.50 to 9.995mA | 50µA | ±(2% Reading +200µA) |
| 10.00 to 99.90mA | 100µA | ±(2% Reading +100µA) |
| 100.0 to 299.0mA | 1mA | ±(2% Reading +1mA) |
| 0.300 to 2.990A | 10mA | ±(2% Reading +10mA) |
| 3.000 to 20.00A | 100mA | ±(2% Reading +100mA) |
| General Features | ||
| Display | OLED, 152 segments 48x39mm | |
| Memory | 300 measurements | |
| Alarm | 2 separate alarms (Ω and A) | |
| Power Source | 4x1.5V LR6 (AA) alkaline batteries or 4 NiMH batteries | |
| Battery Life | 12 hours or 1440 30-seconds tests approx. | |
| Jaw Opening | 1.26” (32mm) max or 1.18 1.57" (30 x 40mm) or 0.79 x 2.17" (20 x 55mm) bar | |
| Dimensions | 11.8 x 4.2 x 2.2” (300 x 106 x 56mm) | |
| Weight (with Battery) | 2.6 lbs (1.2Kg) | |
| Operating Temperature | -4° to +131°F (-20 to +55°C) | |
| Storage Temperature | -22° to +158°F (-30 to +70°C) | |
| Relative Humidity | Up to 90% @ 40°C | |
| Ingress Protection (IP) | IP 40 | |
| EMC | EN 61326-1 | |
| Safety Compliance | IEC 61010-1, EN 61010-2-32, Pollution Degree 2, 100V CAT IV | |
