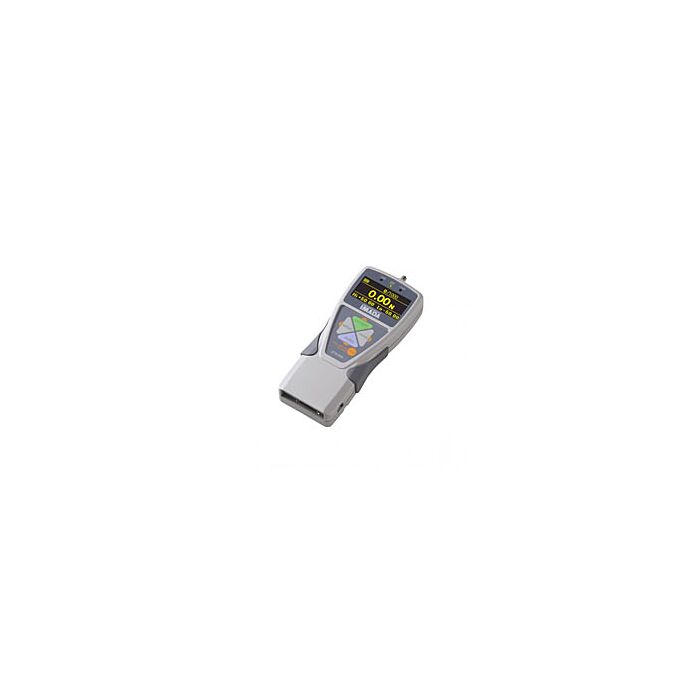

Imada ZTA-110
Luminescent EL Display Digital Force Gauge,110 lbf
Order #: ZTA-110
Mfg #: ZTA-110
$1,505.00
Product Highlights
- Accuracy ± 0.2% F.S., ± 1 LSD
- Selectable Units lbf(ozf), kgf(gf) or Newtons
- Overload Capacity 200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
- Power Rechargeable Ni-MH battery pack or AC adapter
- Battery Indicator Indicates three charge states high, med and low
- Memory Non-volatile, recall up to 1,000 data
- Setpoints Programmable high/low setpoints w/ color-coded LEDs & output signal
- Outputs Outputs USB (virtual COM^port), RS-232C, Digimatic and ± 2 VDC analog output
- Operating Temp. Operating Temp. 32° to 100°F (0° to 40°C)
- EL^electro luminescent display is highly visible in dark locations
- Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
- Processes and transmits 2,000 data/sec.
- Color-coded LED indicators and output signal for Go/No Go testing
- Ergonomic design with non-slip grips, heavy duty metal construction
- Capacity up to 1,100 lbs (push/pull)
- Overload capacity 200% F.S.
- USB (virtual COM^port), RS-232C, Digimatic and Analog outputs
- 1,000 data memory for recall or download
- External switch display hold and clear
- Internal Ni-MH batteries or AC adapter
- Real time and peak mode (selectable)
- Overload alarm and output signal
- Display force and displacement data with Imada FA test stand
- Export gauge memory or save continuous data to USB^flash drives
Each Unit Includes
- Full set of attachments
- ZT Logger data acquisition software
- USB^cable
- AC adapter/charger
- Calibration cert traceable to NIST
- Carrying case
