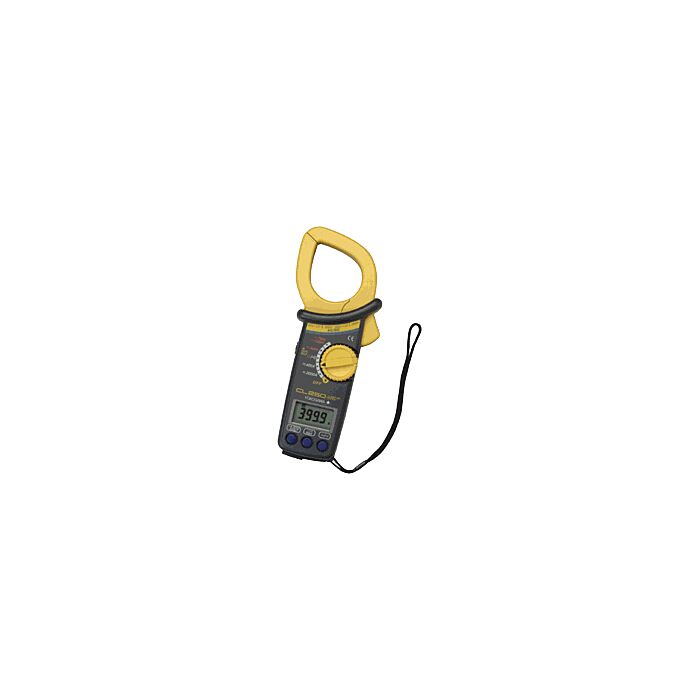

Yokogawa CL250

AC/DC RMS Sensing Current Clamp Meter, 400/2000A

Order #: CL250

Mfg #: CL250

Special Price $705.60 Regular Price $735.00

Availability: Ships in 3-4 weeks

New Purchase Calibration

None

Calibration without Data + $203.33

Calibration with Data + $266.01

Accredited Calibration with Data and Uncertainties + $347.04

Add Calibration

Qty

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Yokogawa Model # CL250
Method of detection True RMS
Display LCD(Digital display:3999 counts)
Response Time Approx. 2 seconds
Range Switching Auto-range
Data Hold On all range
Peak Hold On AC/DC current range, AC/DC voltage range
Ambient temperature and humidity 0 to 40 deg.C, 90% RH or less (no condensation)
Influence of conductor position ±2.0% or less
Safety Standard Conforms EN61010-1, EN61010-2-031, EN61010-2-032
Circuit Voltage 600Vrms or less
Withstanding Voltage 5.55kV AC for one minute
Power Supply 6F22(006P)9V ×1 or 6LR61 ×1
Battery Life Approx. 15 hours (continuous)
Consumed Current Approx. 15mA
Sleep Function Automatically powered down in about 30 minutes after the last switch operation
Diameter of measurable conductor 33mm at maximum
Dimensions Approx.91(W) × 210(H) × 40(D)mm
Weight Approx. 450g

Yokogawa Clamp-on Testers 300 & CL Series Datasheet
