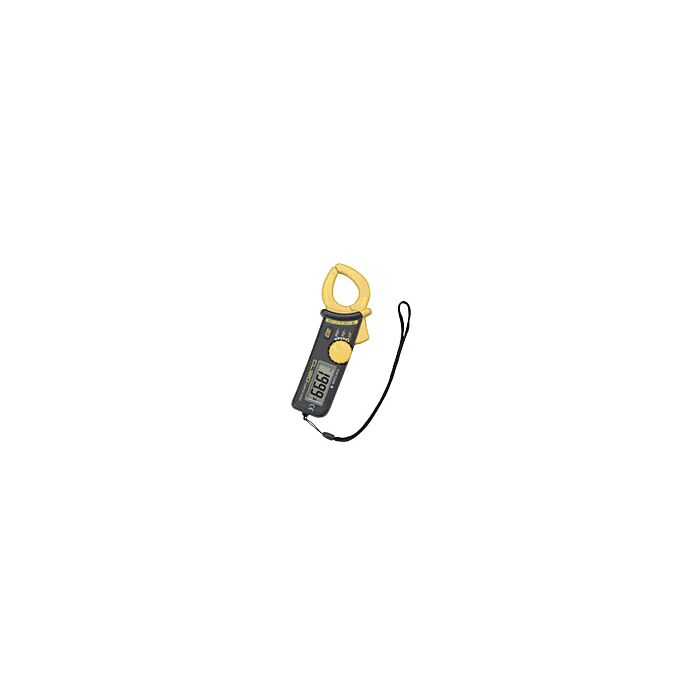

Yokogawa CL120
AC Average Sensing Current Clamp Meter, 20/200A
Order #: CL120
Mfg #: CL120
Special Price
$174.72
Regular Price
$182.00
Yokogawa CL120
AC Average Sensing Current Clamp Meter, 20/200A
Order #: CL120
Mfg #: CL120
Special Price
$174.72
Regular Price
$182.00
Availability: Ships in 3-4 weeks
Product Highlights
- Yokogawa Model # CL120
- Light weight & compact design
- Approved for comformity to safety standards
- EN61010-1,EN61010-2-032 (CAT. III 300 V)
- AC Current: 20A Accuracy: 2.0+7 (50 to 1kHz); 200A Accuracy: 3.0+10 (40 to 1kHz)
- Method of detection Mean value
- Display LCD(Digital display:1999 counts)
- Response Time Approx. 2 seconds
- Range Switching Manual-range
- Data Hold On all range
- Ambient temperature and humidity 0 to 40 deg.C, 85% RH or less (no condensation)
- Temperature Coefficient - Influence of external magnetic field 0.8A or less at 400A/m
- Influence of conductor position ±2% or less
- Circuit Voltage 300Vrms or less
- Withstanding Voltage 3.7kV AC for one minute
- Power Supply LR-44 ×2(3V) or SR-44 ×2
- Battery Life Approx. 100 hours (continuous)
- Consumed Current Approx. 1mA
- Auto power-off Approx. 10 minutes
- Diameter of measurable conductor 24mm at maximum
- Dimensions Approx. 59(W) × 148(H) × 26(D)mm
- Weight Approx. 100g
Each Unit Includes
- User's manual (IM CL120)
- Batteries
- Carrying case (93033)
