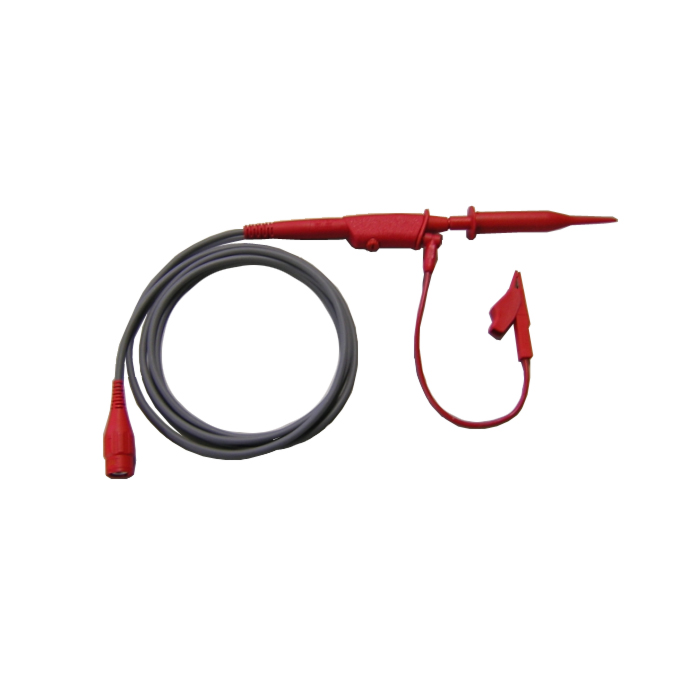

Yokogawa 701947 for Rent, 200MHz Passive Probe, Isolated, 100:1, 100MOhm, 3540Vp-CAT I
200MHz Passive Probe, Isolated, 100:1, 100MOhm, 3540Vp-CAT I
Order #: 701947-RENT2
Mfg #: 701947
Call for price
Call for price
Yokogawa 701947 for Rent, 200MHz Passive Probe, Isolated, 100:1, 100MOhm, 3540Vp-CAT I
200MHz Passive Probe, Isolated, 100:1, 100MOhm, 3540Vp-CAT I
Order #: 701947-RENT2
Mfg #: 701947
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Product Highlights
Passive Probe, 3540Vp-CAT I, 1000Vp-CAT II, 200MHz, 100:1, 100MΩ, 1.5m, 'Isolated Probe' 'Iso-Probe'. For use with 701250, 701251, 701260, 701280, 701281, 720210 isolated-input modules ONLY. For use with DL850 series, DL750/DL750P, SL1400, and SL1000. Not for use with CAT III or CAT IV measurements
- Bandwidth: DC to 200MHz (-3dB)
- Attenuation ratio: 100:1
- Connector Type: BNC
- Input Resistance: 100MΩ
- Input Capacitance: 7pF
- Compensation Range:
- Rise Time: 1.2ns
- Maximum input voltage, Space Between Shield and Earth:
- +/-1,000V (DC + ACpeak) CAT II
- +/-1,000V (DC + ACpeak) CAT I
- Maximum input voltage, Space Between Tip and Shield:
- +/-1,000V (DC + ACpeak) CAT II
- +/-3,540V (DC + ACpeak) CAT I
- Cable length: 1.5m
- Standard accessories included: One ach, B8073ZF Safety Plug-On Clip (high-side pincher), and B8074ZG Safety Clip Lead (low-side)
- Safety Rating (Probe Alone): EN61010-031:2002, CAT I and II Only.
