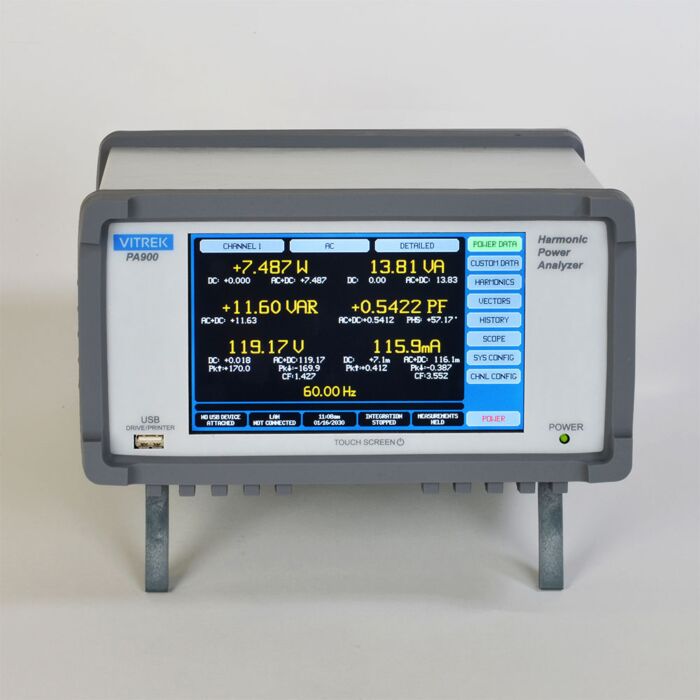

Vitrek PA900 Power Analyzer Mainframe, 4 Channel Capacity

Product Highlights

• Most advanced Power Measurement Platform with an unprecedented range of capabilities
• Highest Precision with Industry leading noise floor—as low as 1ppm vs 300ppm or more on competitive units
• Up to 500 Harmonics at 400Hz, meets Airbus avionics power measurement criteria. Bar graph also features fingertip selectable numeric amplitude and phase data
• Large, Hi-Resolution Color Display shows all the data you want with an easy-to-use touchscreen user interface to get you up and testing in no time
• Modular design lets you choose up to 4 Power Measurement Channel Cards in any combination of 3 different Channel Card types
• The S type Channel Card provides 0.1% basic Accuracy with 1 MHz class bandwidth for an extremely economical price
• The A type Channel Card offers world class 0.03% Accuracy with 1MHz class bandwidth at a very reasonable cost
• The W type Channel Card delivers 5 MHZ class bandwidth and a 0.1% basic accuracy
• All Channel Cards types are available with one of 3 current input options: D - Dual Shunt, H - High Current and X - External Current Transducer Input
• Built-in Data Logger—Logs up to 16 selectable data results to USB thumbdrive. Intervals from 10mS to 100 hours with optional time/ date stamps
• Power Data Screen - displays V, A, W, VA, VAR and PF data for any selected channel or group of channels
• Custom Power Data Screens - lets you choose the color, font size, location and data you want displayed
• With selectable time base and triggering—Scope View, acts as a digital scope to capture events such as in-rush current
• Cycle View - Represents a single cycle of the voltage and current periodic waveforms sampled over many cycles within a measurement period
• Vector Screen—Displays up to 10 fundamental voltage and current vectors
• History Screen—Like a DVR, the PA900 automatically maintains a continuous historical recording of measurement data. Any data from this record may be viewed or downloaded. Pause, clear and restart functionality is available from the HISTORY screen or via interface
• Effective Sampling Rate - for analysis of periodic signals within a measurement period is 384MSPS
• Measurement Resolution—22 bit for S & W type Channel Cards, 24 bit for A type
• Up to 3 Different Virtual Power Analyzers™ (VPAs) may be configured for three phase measurements or input/output efficiency tests—so there is no need to interconnect separate units in order to make synchronous or non-synchronous group power measurements
• VPA Efficiency Grouping—Available data includes: Power totals for IN, MIDDEL and OUT efficiency groups, the power loss between any pair of groups, and the percentage efficiency between any pair of groups
• VPA Multi-Channel Wiring—Each VPA may be configured as 2Ø3w (2 ch), 3Ø3w (2 ch), 3Ø3w (3 ch), 3Ø4w (3 ch)
• Connectivity - Ethernet, High Speed Serial and USB (client) control interfaces
• Front Panel USB Drive Interface—Permits data logging to a file, screen shot' capture, easy import and export of: display and measurement configurations and custom data screen definitions
• Available MT type Channel Card for motor torque and speed inputs
• CE mark certified to EN61010
• 2 Year Parts and Labor Warranty, 2 Year Accuracy Specs and calibration cycle
• Made in the USA
