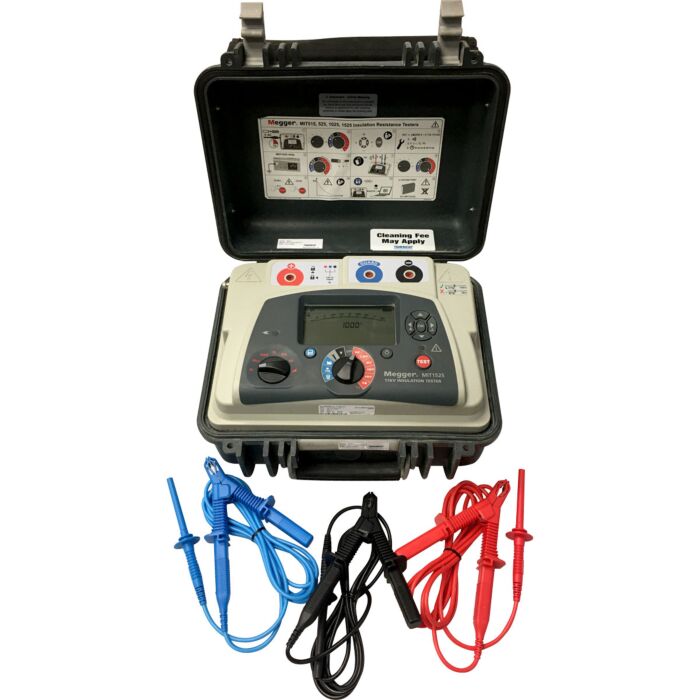

Used Megger MIT1525 Industrial Insulaton Resistance Tester, 15kV

Product Highlights

Interested but want to see more? Additional images are available. Contact Tanscat with the unit asset # to request additional images.

15 kV IRT with all test modes including a ramp test plus advanced memory functions with recall to screen, RTC for time/date stamp of results and USB cable interface to PC / PowerDB

• Insulation resistance up to 30 TO @ 15 kV, 20 TO @ 10kV, 10 TO @ 5 kV
• IR, Timed IR, DAR, PI, DD, SV and ramp diagnostic tests
• High current – 3 mA short circuit current
• High noise immunity – 3mA (5kV and 10kV) 6mA (15kV) of noise rejection
• Li-ion battery – up to 6 hrs continuous testing @ 5 kV with a 100M load, battery meets IEC 62133
• Safety rating: CATIV 600 V to 3000 m (5 kV, 10 kV)
• CATIV 1000 V to 3000 m (15 kV)
• Large LCD display with backlight
• Dedicated voltmeter function (30 V to 660 V)
• Advanced memory, on screen recall and real time clock for date/time stamped results
• Download of on-board results via USB interface
• PowerDB Lite asset management software
• Recorded temperature (measured by independent instruments) can be saved with test result
• PowerDB Lite asset management software supplied

Each Unit Includes

• Power lead
• USB cable
• Product information CD

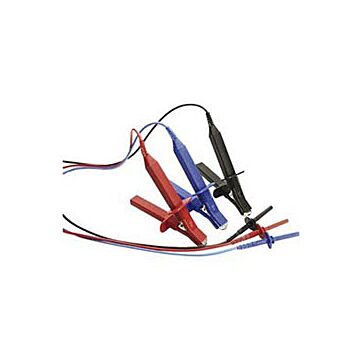

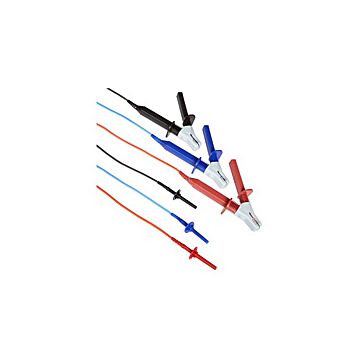

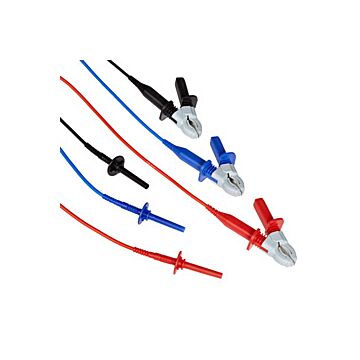

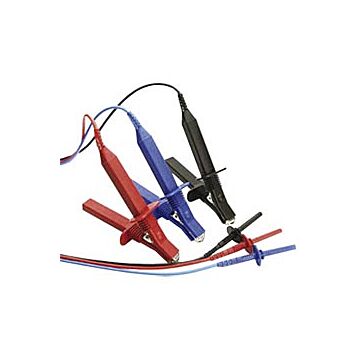

• 3 m leadset x 3

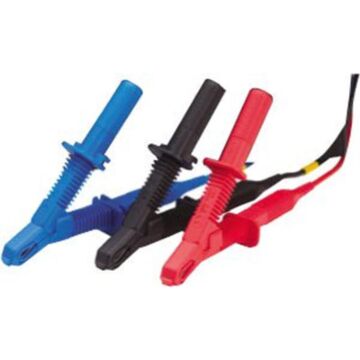

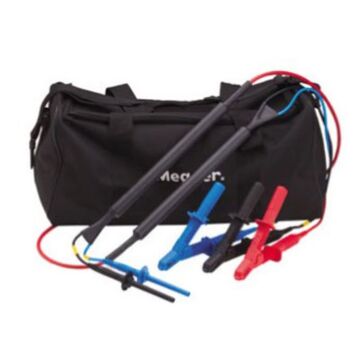

• Large 15 kV insulated clips
