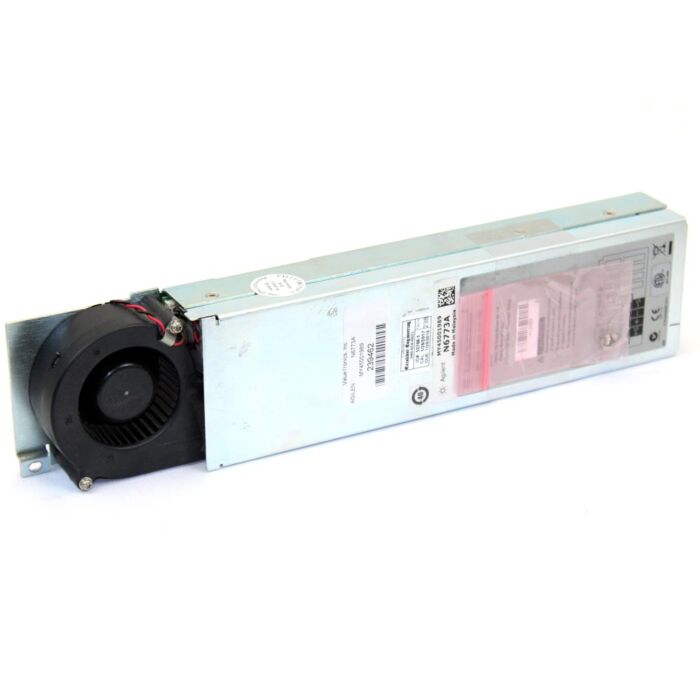

Used Keysight / Agilent N6773A DC Power Module, 20V, 15A, 300W
DC Power Module 20V, 15A, 300W

Order #: N6773A-USED

Mfg #: N6773A

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,594.67

Used Keysight / Agilent N6773A DC Power Module, 20V, 15A, 300W

DC Power Module 20V, 15A, 300W

Order #: N6773A-USED

Mfg #: N6773A

$1,594.67

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Ships in 3-4 weeks
This item has NEW version starting at
$2,688.00
Shop now

Product Highlights

The Keysight N6773A is a 300 W basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.

This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.

Output ratings

  • Voltage: 20 V
  • Current: 15 A
  • Power: 300 W

Programming accuracy (at 23°C ±5°C)

  • Voltage: 0.1% + 20 mV
  • Current: 0.15% + 60 mA

Ripple & noise (20 Hz to 20 MHz)

  • Voltage peak-to-peak: 20 mV
  • Voltage rms: 3 mV
  • Current rms: 6 mA
