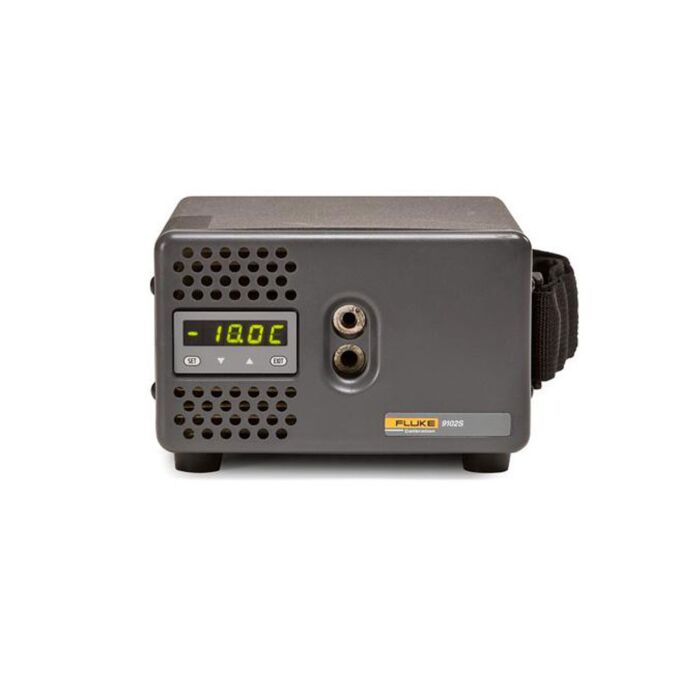

Fluke Calibration 9102S-156 Handheld Dry-Well, -10C to 122C (14F to 252F) @ 23C, NIST
Order #: 5961T
Mfg #: 1885178
Product Highlights
For work in the temperature range of –10°C to 122°C, our Model 9102S dry-well is another first in the industry, featuring stability to ±0.05°C.
This dry-well is only four inches high and six inches wide, achieves temperatures as low as –10°C, includes a NIST-traceable calibration, and is stable to ±0.05°C. The Model 9102S is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.
The 9102S has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size.
- -10°C to 122°C (14°F to 252°F) at 23°C ambient
- Accuracy: -10°C to 100°C ±0.5°C
- 100°C to 122°C ±1.0°C
- Well-to-well uniformity: ±0.2°C sensors of similar size at equal depths within wells
- Heating Times: ambient to 100°C : 10 minutes
- Stabilization: 7 Minutes
- Cooling times: ambient to 0°C : 10 minutes
- Well Depth: 4 inches (102 mm)
- Removable inserts: available in sizes from 1/16" (1.6mm) to 7/16" (11.1mm) [with 1/4" (6.4mm) and 3/16" (4.8mm) included]
- Size: 3.9"H x 5.5"W x 6.9"D (99 x 140 x 175 mm)
- Weight: 4 lb (1.8 kg)
- NIST Traceable Calibration Points at: -10°C, 25°C, 50°C, 55°C, 100°C, 122°C
Each Unit Includes
- One 1/4" Insert, One 3/16" Insert
- Manufacturer's NIST-Traceable Certificate
- Instructions
