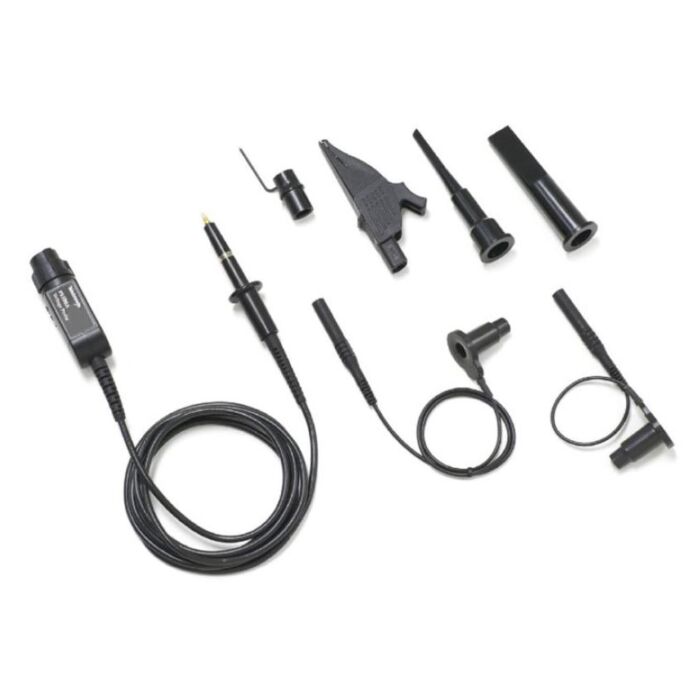

Tektronix TPP0850 for Rent, High Voltage Probe, 800 MHz, 50X, 2.5kV, Single-ended, TekVPI

Product Highlights

The TPP0850 offers the industry's highest bandwidth probe (800 MHz) for high-voltage signals (up to 2500 V_p-p). This is ideal for testing power semiconductors and switch-mode power supplies, which continue to increase in switching speed to minimize power loss, creating a need for faster rise time, higher bandwidth, and higher voltage probes. The TPP0850 meets this need and can be used with switching transistor circuits operating at 1200 V_RMS, above the voltage operating range of standard general-purpose probes. It will also be able to accommodate emerging power applications that will require even faster rise time capabilities.

Safe high voltage probe solutions for ground-referenced voltage testing. It is critical to safely and accurately capture real-time signal information from "elevated" or "floating" voltage systems. Our portfolio of high voltage probes provides the safety you need for single-ended, differential or isolated measurements.

• DC to 800 MHz
• 2500 V_Peak, 1000 V_RMS CAT II
• 50X with readout coding
• Designed for use with the MSO/DPO5000 and MSO/DPO4000B Series Oscilloscopes

Applications

• Power supply design
• Design motor drive
• Electronic ballast
• Power semiconductors
• Switch mode control
• UPS systems
• Power converters
