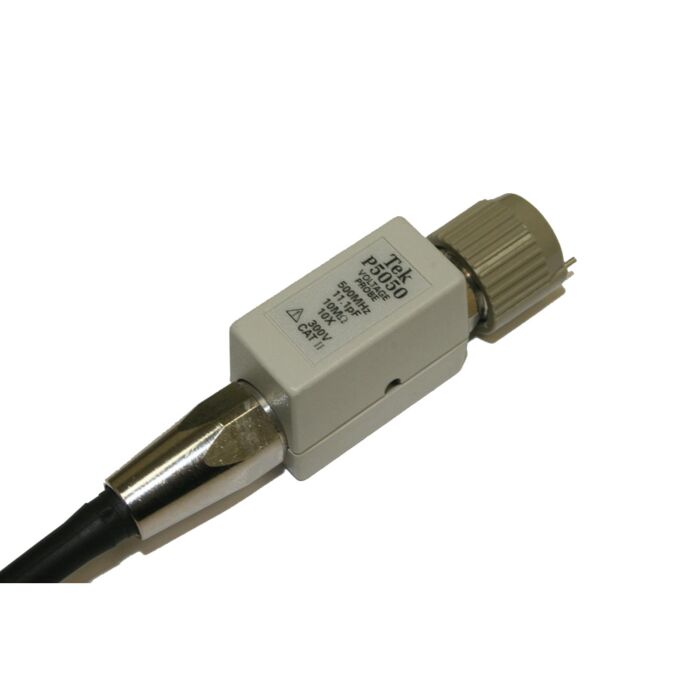

Used Tektronix P5050 500MHz Passive Probe, 10X Attenuation, 16 to 22 pF Comp.
500MHz Passive Probe, 10X Attenuation, 16 to 22 pF Comp.
Order #: P5050-USED
Mfg #: P5050
Call for price
Call for price
Used Tektronix P5050 500MHz Passive Probe, 10X Attenuation, 16 to 22 pF Comp.
500MHz Passive Probe, 10X Attenuation, 16 to 22 pF Comp.
Order #: P5050-USED
Mfg #: P5050
Call for price
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Call for price
Availability: Ships in 3-4 weeks
This item is available as RENTAL at
Call for price
Shop now
Product Features:
- 500 MHz Probe Bandwidth
- Large Input Impedance at the Probe Tip (10 MΩ, 8pF)
- 10X Attenuation Factor
- 300 V CAT II Input Voltage
- Compact Probe Head for Probing Small Geometry Circuit Elements
- Small Probe Body for Enhanced Visibility to the Device-Under-Test
- Replaceable Probe Tip Cartridges
- Large Accessory Set for Versatile Connectivity
- P5050B features the TekProbe Interface for Direct BNC Connection for Oscilloscopes with 1 MΩ Inputs
- Integrated Oscilloscope and Probe Measurement Systems Feature Intelligent Communication that Automatically Scales and Adjusts Units on the Oscilloscope Display
Applications
- Low Power Devices
- Service
- Manufacturing Engineering
- Test Research and Development
Description
The Tektronix P5050B 500MHz General Purpose Passive Probe with Tek Probe I Interface, 10X Attenuation Factor, Compensation Range: 8pF to 18pF is a high bandwidth, high impedance 10X passive voltage probes with 10 MΩ input resistance. The Tek P5050/B probe feature a small probe head and sharp tip that makes it easier to probe dense circuitry. The Tektronix P6139B and P5050B share similar electrical specifications but support Tektronix oscilloscopes with different compensation ranges.
