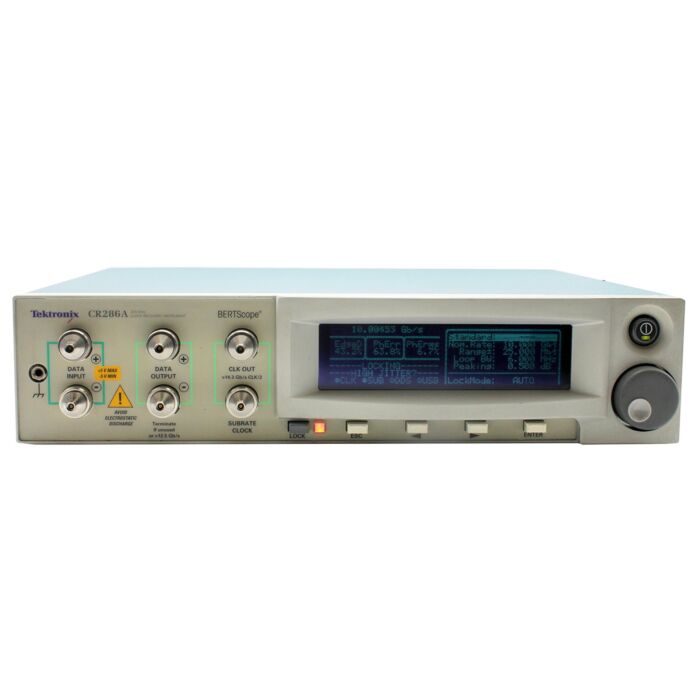

Used Tektronix CR286A BERTScope Clock Recovery Instrument, 28.6Gb/s
BERTScope Clock Recovery Instrument,28.6Gb/s
Order #: CR286A-USED
Mfg #: CR286A
$17,283.35
Used Tektronix CR286A BERTScope Clock Recovery Instrument, 28.6Gb/s
BERTScope Clock Recovery Instrument,28.6Gb/s
Order #: CR286A-USED
Mfg #: CR286A
$17,283.35
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Call for Availability
![Loading...](https://www.transcat.ca/static/version1719851789/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights
Features:
- 100 mV
- 12 MHz
- 28.6 Gb/s
- Instrumentation quality clock recovery
- Accurate, variable loop bandwidth from 100 kHz to 12 MHz, with optional 24 MHz for the jitter transfer function (JTF) bandwidths of USB 3.0, SATA 6G, and PCIe Gen3
- Accurate, adjustable, self-measured, and displayed PLL loop bandwidth, peaking, and JTF - get the "Golden PLL" response needed for standards compliance testing
- Programmable peaking adjustment with first- and second-order roll-off capability
- USB control interface integrated into BERTScope view, or stand-alone with included BERTScope PC software
- DC-coupled data through path for accurate signal integrity
- Full and divided clock outputs with selectable divide ratios. Full-rate clock output up to 14.3 Gb/s
- Built-in equalizer function enables clock recovery under high ISI input conditions
- Data measurement capability
Applications:
- Design/Verification of high-speed I/O components and systems
- Signal integrity analysis
- Certification testing of serial data streams for industry standards
The Tektronix CR286A is an analyzer.
