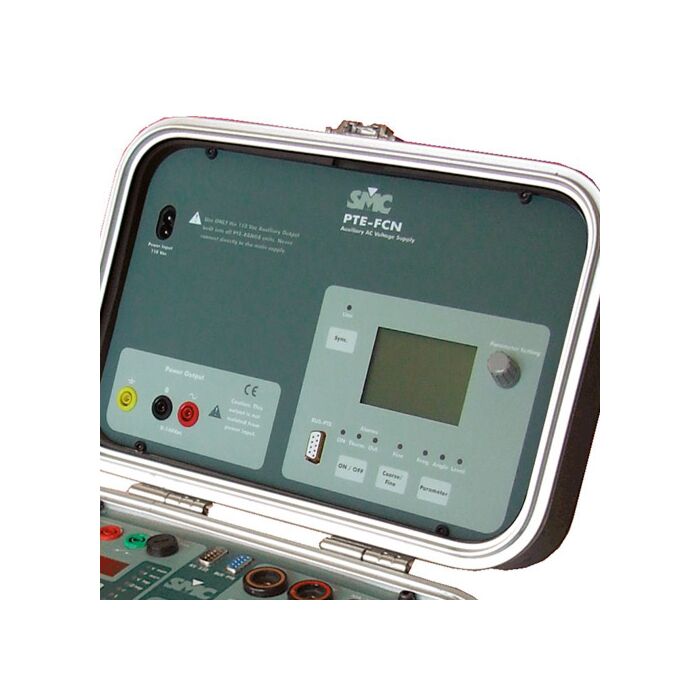

SMC PTE-FCN
Variable Voltage, Phase, and Frequency Source, with LCD
Order #: PTE-FCN
Mfg #: PTE-FCN
$5,565.00
SMC PTE-FCN
Variable Voltage, Phase, and Frequency Source, with LCD
Order #: PTE-FCN
Mfg #: PTE-FCN
$5,565.00
The PTE-FCN is an independent adjustable voltage source that can be installed inside the PTE-100-C’s lid in a few minutes.
Availability: Ships in 3-4 weeks
Product Highlights
It is the easiest and most economical way of increasing the relay types that can be tested with the PTE-100-C. The PTE-FCN includes its own LCD display and a BUS-PTE connection, which makes it easier to operate and enables it for use in combination with any other test set in the PTE range. The PTE-FCN is included as standard in models PTE-100-C Pro and PTE-50-CE Pro.
CHARACTERISTICS
- Voltage: 0 – 140 Vac
- Phase angle: 0 – 359.9º
- Frequency: 40 – 70 Hz
- Power: 30 VA
- Automatic protection against overload and overheating
- Powered from the PTE-100-C’s 110 fixed Vac output
APPLICATIONS
- Directional overcurrent relays
- Impedance relays
- Distance relays
- Frequency relays
- Power relays
- Synchronizing relays
