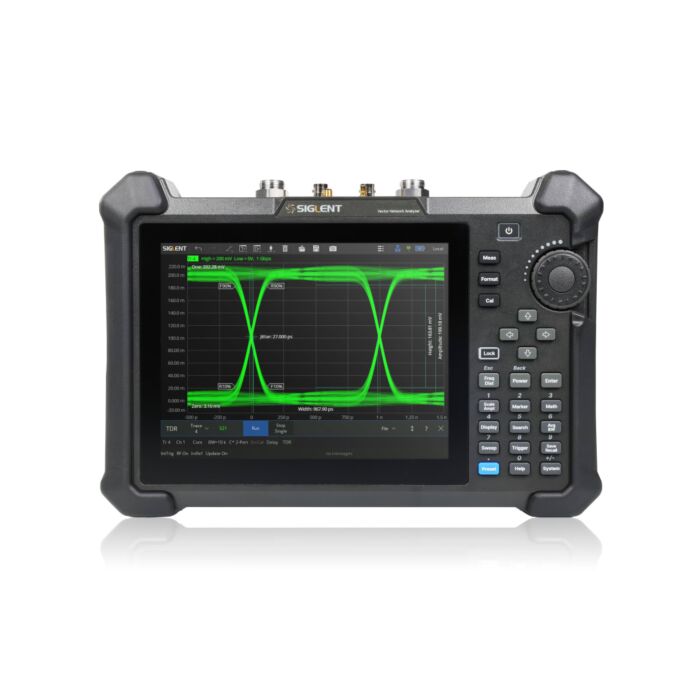

Siglent SHN926A Vector Network Analyzer 26.5GHz-30 kHz
Order #: SHN926A
Mfg #: SHN926A
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights
SHN900A series portable vector network analyzer with frequency range up to 26.5GHz, integrates vector network analysis, time domain analysis, spectrum analysis, and standard cable and antenna analysis. It is specially designed for portable and flexible testing of RF components, cables, and systems in R&D, production, maintenance and communications, antenna base stations, and automotive electronics.
The SHN900A provides a portable, easy to use design for complex RF measurements. The SHN900A can operate as a cable and antenna tester including built-in DC voltage bias, a full 2-port vector network analyzer with advanced TDR measurements, pulse measurements, pass-fail limit testing, and complete S-parameters. The SHN900A is a highly integrated, multi-mode RF test system for use in the field and on the line with a 4-hour battery life and a mechanical package suitable to these complex environments.
Features
- Frequency range: 30 kHz - 26.5 GHz
- Specially designed for portable and flexible testing of RF components, cables, antenna base stations, and more
- Standard CAT/DTF measurement
- Standard bias-tee for external measured objects
- Standard GPS, time, and location information saving (ANT-GPS1 antenna sold separately)
- Time domain analysis (via option SHN900-TDA)
- Enhanced time domain analysis (via option SHN900-TDR)
- Spectrum analysis (via option SHN900-SA)
- Powered by Li-ion batteries with life of up to 4 hours
- 8.4-inch touch screen
- Siglent SHN900-TDA Time Domain Analysis (SW)Time Domain Analysis (SW)
Order #: SHN900-TDA
Mfg #: SHN900-TDA
Availability: Call for availability$1,092.00 - Siglent SHN900-TDR Enhanced Time Domain Analysis (SW)Enhanced Time Domain Analysis (SW)
Order #: SHN900-TDR
Mfg #: SHN900-TDR
Availability: Call for availability$5,432.00 - Siglent SHN900-SA Spectrum Analyzer (SW)Spectrum Analyzer (SW)
Order #: SHN900-SA
Mfg #: SHN900-SA
Availability: Call for availability$2,688.00
Model | Frequency range | Ports | Dynamic range | Range of output |
---|---|---|---|---|
SHN914A | 30kHz - 14GHz | 2 | 100dB | -45 dBm ~ +10 dBm |
SHN920A | 30kHz - 20GHz | 2 | 100dB | -45 dBm ~ +10 dBm |
SHN926A | 30kHz - 26.5GHz | 2 | 100dB | -45 dBm ~ +10 dBm |
-
