Siglent SHN900-TDR Enhanced Time Domain Analysis (SW)

Product Highlights

The Siglent SHN900-TDR is the enhanced time domain analysis option for SHN900A vector network analyzers.

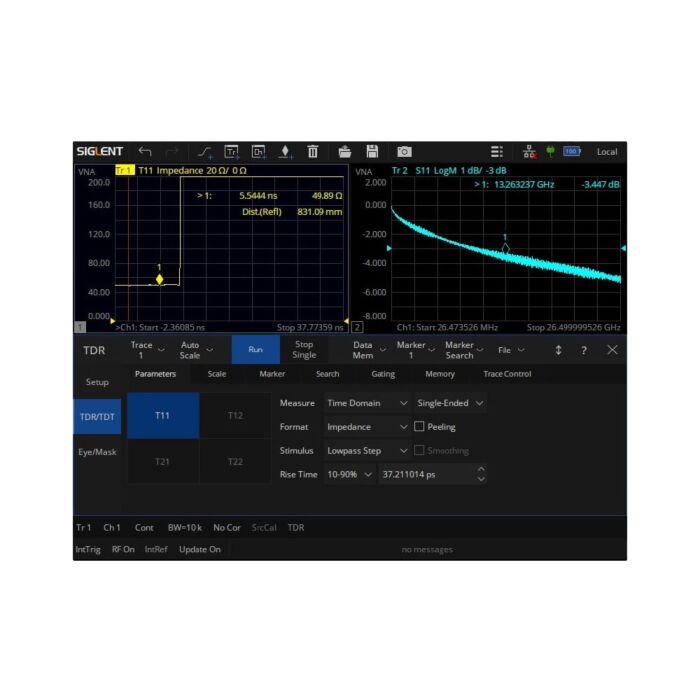

This option provides time-domain reflection, transmission analysis and eye diagram simulation analysis functions. Compared with ordinary frequency-domain analysis, it can quickly locate the fault point, determine the type of fault, can use the built-in virtual code generator to generate simulated eye diagrams, with jitter injection function to simulate the impact of the input signal with jitter on signal transmission.

Features

• Enhanced time domain analysis option
• Compatible with Siglent SHN900A vector network analyzers (sold separately)
• Provides time-domain reflection, transmission analysis, and eye diagram simulation analysis functions
• Can quickly locate the fault point and determine the type of fault
• Generates simulated eye diagrams with jitter injection function to simulate the impact of the input signal with jitter on signal transmission
