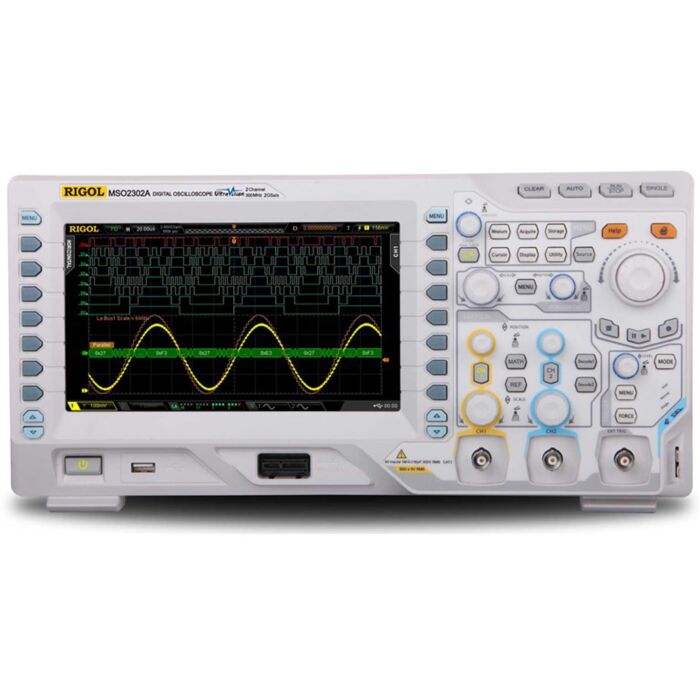

RIGOL MSO2302A-S
300MHz 2-Channel Mixed Signal Oscilloscope w/16 Logic Channls
Order #: MSO2302A-S
Mfg #: MSO2302A-S
$2,112.60
RIGOL MSO2302A-S
300MHz 2-Channel Mixed Signal Oscilloscope w/16 Logic Channls
Order #: MSO2302A-S
Mfg #: MSO2302A-S
$2,112.60
Availability: Ships in 3-4 weeks
This item is available as RENTAL at
Call for price
Shop now
Product Highlights
- 300MHz Bandwidth, 16 Digital Channel MSO with sources
- 2 Analog Channels
- 1 ns/div to 1.000 ks/div Time Base Scale
- Calculated Rise Time: 1.2ns
- Lower noise floor, Wider vertical range: 500uV/div
- 10V/div
- Max. Sample Rate: Analog channel up to 2G Sa/s, Digital channel up to 1G Sa/s (MSO)
- Memory Depth: Analog channel up to14Mpts /56Mpts (Opt.), Digital channel up to 14Mpts/28Mpts (Opt.)
- Innovative "UltraVision" technology
- Waveform capture rate up to 50,000 wfs/s
- Up to 256 Levels intensity grading waveform display
- Up to 65,000 frames Hardware based Real Time waveform, Record, Replay & Analysis functions (Std.)
- A variety of trigger and serial bus decoding functions (RS232,I2C,SPI,CAN) - May require upgrade
- Built-in 2 Ch Waveform generator (MSO/DS2000A-S)
- Complete connectivity: USB Host & Device, LAN (LXI), AUX
- 8 inch TFT (800x480) WVGA
