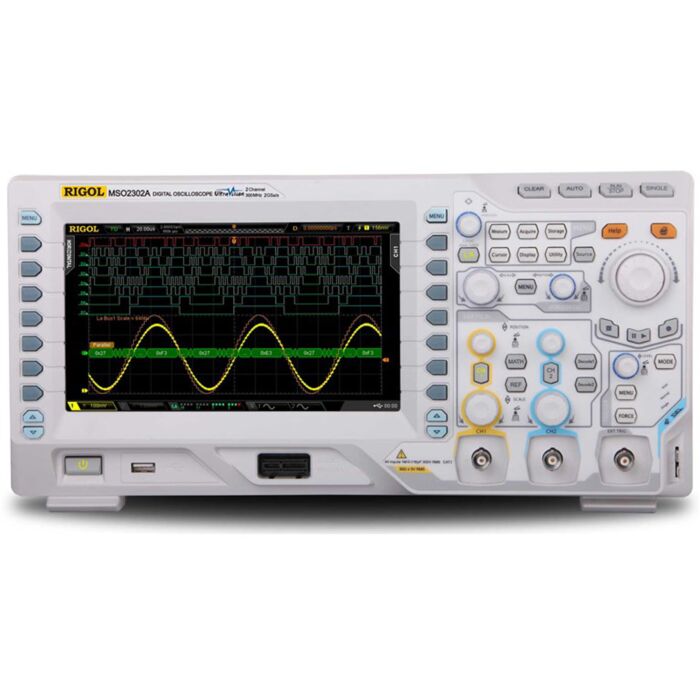

RIGOL MSO2102A-S

Product Highlights

• 100MHz Bandwidth, 16 Digital Channel MSO with sources
• 2 Analog Channels
• Calculated Rise Time: 3.5ns
• Lower noise floor, Wider vertical range: 500uV/div
• 10V/div
• Max. Sample Rate: Analog channel up to 2G Sa/s, Digital channel up to 1G Sa/s (MSO)
• Memory Depth: Analog channel up to14Mpts /56Mpts (Opt.), Digital channel up to 14Mpts/28Mpts (Opt.)
• Innovative "UltraVision" technology
• Waveform capture rate up to 50,000 wfs/s
• Up to 256 Levels intensity grading waveform display
• Up to 65,000 frames Hardware based Real Time waveform, Record, Replay & Analysis functions(Std.)
• A variety of trigger and serial bus decoding functions (RS232,I2C,SPI,CAN) - May require upgrade
•  Built-in 2 Ch Waveform generator (MSO/DS2000A-S)
• Complete connectivity: USB Host & Device, LAN (LXI), AUX
• 8 inch TFT (800x480) WVGA
