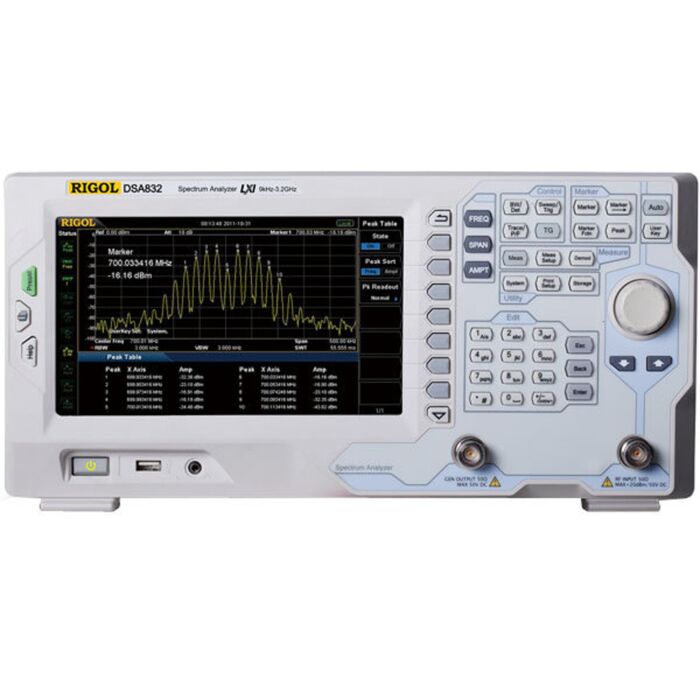

RIGOL DSA832
3.2GHz Spectrum Analyzer w/PA-DSA832 Software
Order #: DSA832
Mfg #: DSA832
$5,710.60
RIGOL DSA832
3.2GHz Spectrum Analyzer w/PA-DSA832 Software
Order #: DSA832
Mfg #: DSA832
- As of 4/1/2017 - Includes Preamplifier Option PA-DSA832 Standard (Previously a $599 add on)
- 9 kHz to 3.2 GHz Frequency Range
- Displayed Average Noise Level (DANL) normalized to 1 Hz ranging from -135 dBm to -161 dBm typical
- -80 to -98 dBc/Hz @10 kHz offset Phase Noise
- Total Amplitude Uncertainty from <1.5 dB to <0.8 dB nominal
- 100 or 10 Hz Minimum Resolution Bandwidth (RBW) available
- All-Digital IF Technology
- Level Measurement Uncertainty < 0.8dB
- Advanced Measurement Functions (Opt.)
- EMI Filter & Quasi-Peak Detector Kit(Opt.)
- VSWR Measurement Kit(Opt.)
- PC Software(Opt.)
- Optional RF TX/RX Training Kit
- Optional RF Accessories(Cable, Adaptor,Attenuator,Bridge ...)
- Complete Connectivity: LAN(LXI),USB Host & Device, GPIB (Opt.)
- 8 Inch WVGA (800x480) Display
- Compact Size, Light Weight Design
