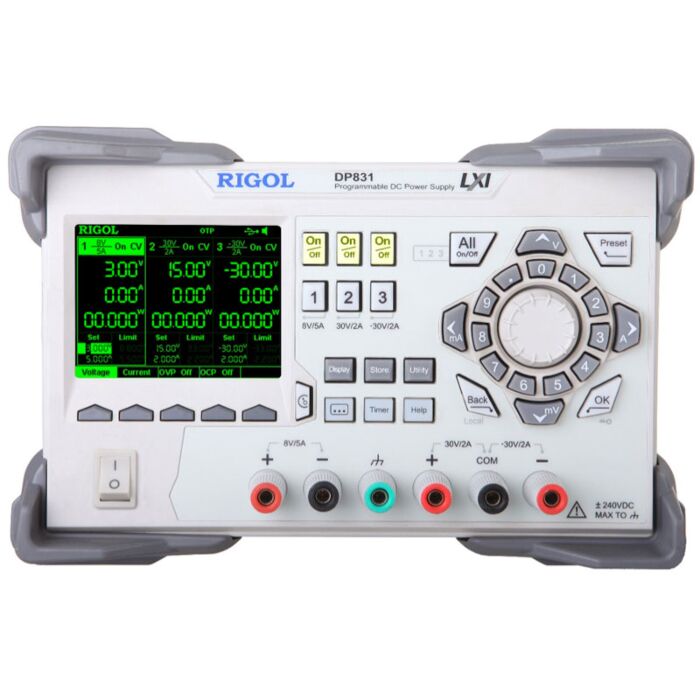

RIGOL DP831

The DP800 Series Power Supplies combine the ability to source, analyze, and coordinate over time in a powerful new package. The DP800 Series is a family of linear power supplies systems with 1, 2, or 3 outputs and up to 200 Watts in total. With one channel isolated users can reconfigure instruments into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features in the advanced "A" series supplies means there are even more ways to use the instruments. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application. Select the value models for best price performance or upgrade to the "A" model to improve resolution and add advanced monitoring, triggering, and programming capabilities.

Product Highlights

• 3 Outputs; total power up to 160W
• Low Ripple Noise <350 uVrms/2mVpp
• Fast transient response time: <50 us
• Channel isolation: CH1 || CH2,CH3
• OVP/OCP/OTP protection functions
• Built in V, A, W measurements and waveform display
• Optional output Delay, Analysis, Monitor, and Trigger functions
• 3.5 inch TFT Display
• Connectivity including USB Host & Device with LXI option
