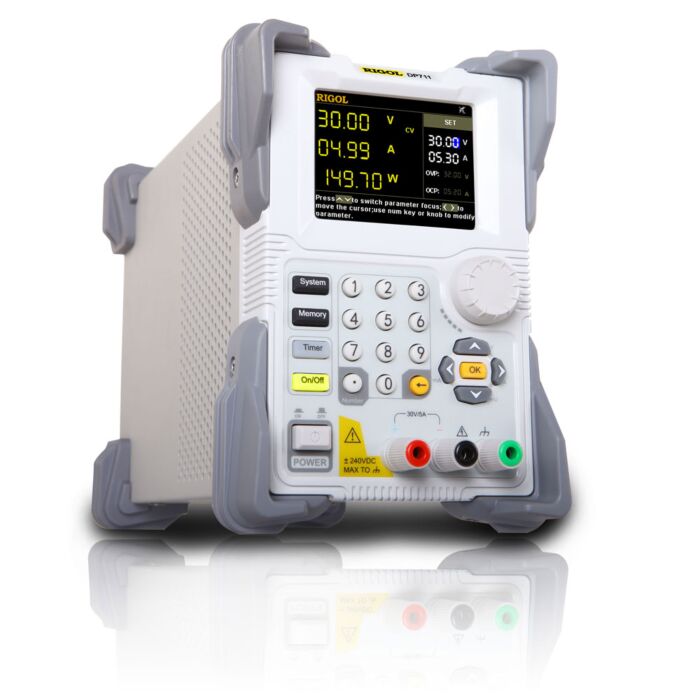

RIGOL DP711

With superb performance specifications, pure and reliable output, and clear user interface, the DP700 series supports timing output and trigger function, and provides a remote communication interface, enabling you to meet your diversified test requirements.

Product Highlights

• single output, 30 V/5 A, total power up to 150 W
• Low ripple and noise: <500 µVrms/3 mVpp; <2 mArms
• Excellent load and line regulation rate: <0.01% + 2 mV; <0.01% + 2 mA
• Transient response time: <50 µs
• 1 mV/1 mA resolution (optional)
• Sound overvoltage/overcurrent/overtemperature protection, with the response time for the overvoltage protection less than 10 ms
• External trigger function supported, enabling synchronous output for multiple devices
• Timing output supported (10 ms to 99999 s) for up to 2,048 groups
• 3.5-inch TFT-LCD; compact and elegant; easy to use
• Front panel locking and any specified key locking supported
• RS232 interface communication supported
• Typical applications:
  • General-purpose testing in the R&D lab
  • Quality control and assessment
  • Pure power for RF (radio frequency)/MW (microwave) circuits or components
  • Power for automobile electronic circuit test
  • Verification and troubleshooting for the device or circuit characteristic
  • Teaching experiment

Each Unit Includes

• Power Cord
• Either one of the following specified fuses:
  • Fuse 50T-050H 250V 5A (AC Selector: 100 Vac or 120 Vac)
  • Fuse 50T-025H 250V 2.5A (AC Selector: 220 Vac or 240 Vac)
• Quick Guide (hard copy)
