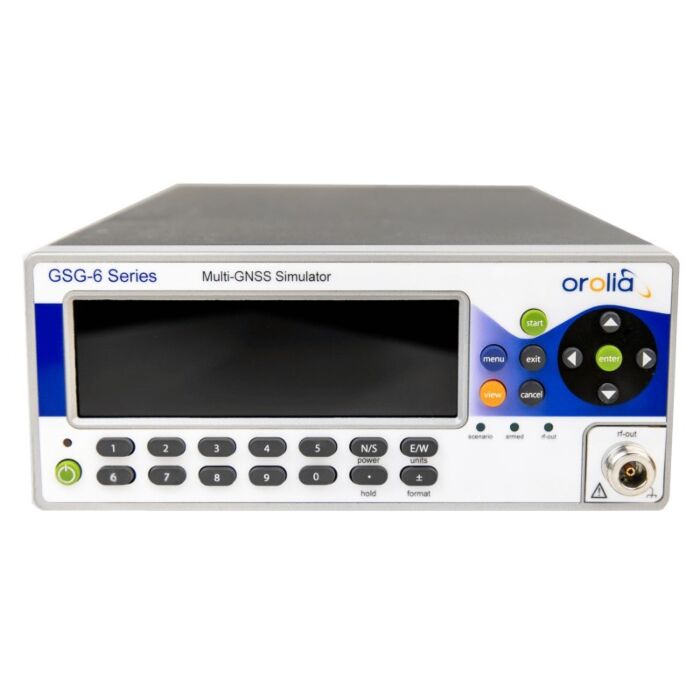

Spectracom GSG-6 for Rent, Advanced GNSS Simulator

Product Highlights

The Safran (formerly Orolia and Spectracom) GSG-6 Series family offers multiple frequency band operation, multiple GNSS constellation simulation, and expansion to many more channels. Incorporating all of the features of the popular 5 Series family, the 6 Series line expands your capability to simulate all the new, emerging GNSS satellite signals. With a base of 32 channels, upgradable to 48, 64, or more, it provides navigational fix and position testing, for engineering and development testing. The 6 Series simulator protects your investment by being upgradeable in the future to more frequency bands and channels (plug-in hardware upgrade) and more signal formats (firmware upgrade).

Besides the variety of built-in navigation/positioning tests, the  Spectracom GSG-6 is also suited for testing the accuracy of timing receivers. All GSG models are equipped with an ultra-high-stability OCXO timebase for precision timing of the satellite data, or use external synchronization from a 10 MHz reference from e.g. a Cesium or Rubidium clock. A built-in 1-pps output, synchronized to the generated satellite data, allows comparison with the 1-pps signal from the timing receiver under test. And the OPT-TIM option provides a ten times improvement in timing calibration accuracy. Currently the GSG-6 series also supports new GPS signals L2C, L5; GLONASS L2; Galileo E5; BeiDou B2; and IRNSS L5.
