Order #: 500T6G18-RENT3
Mfg #: 500T6G18

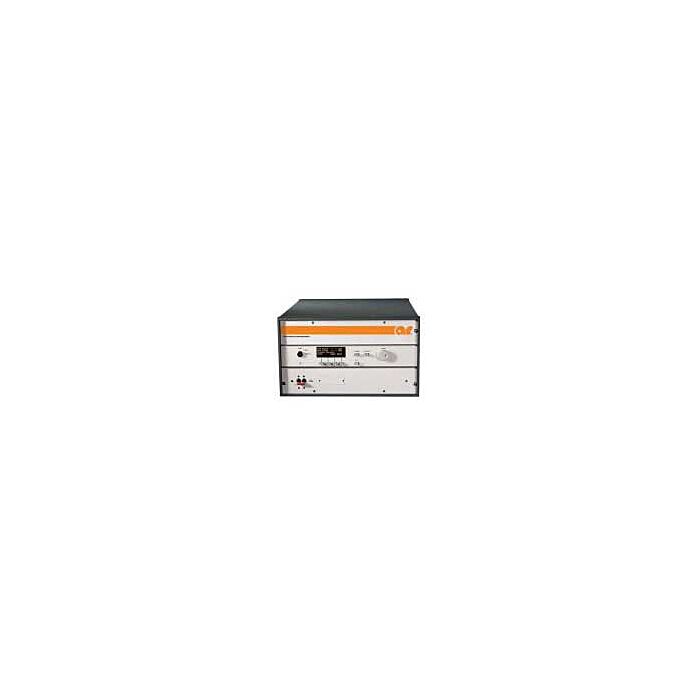

Amplifier Research 500T6G18 for Rent, TWT Amplifier, 6 - 18 GHz, 500W
Order #: 500T6G18-RENT3
Mfg #: 500T6G18
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Product Highlights
The Amplifier Research 500T6G18 is a selfcontained, forced air cooled, broadband traveling wave tube (TWT) microwave amplifier designed for applications where instantaneous bandwidth, reduced harmonics and high gain are required. A reliable TWT subsystem provides a conservative 500 watts minimum at the amplifier output connector. Stated power specifications are at fundamental frequency.
The amplifier's front panel digital display shows forward and reflected output plus extensive system status information accessed through a series of menus via soft keys. Status indicators include power on, warm-up, standby, operate, faults, excess reflected power warning and remote. Standard features include a built-in IEEE-488 (GPIB) interface, 0 dBm input, VSWR protection, gain control, RF output sample port, and more. The Amplifier Research 500T6G18 provides readily available RF power for a variety of applications in Test and Measurement, (including EMC RF susceptibility testing), Industrial and University Research and Development, and Service applications.
Specifications for the Amplifier Research 500T6G18 TWT Amplifier Include:
Frequency | 6 - 18 GHz |
Rated Output Power | 500W |
Gain | 57 dB min |
Noise Figure | -72 dBm/Hz typical |
-
