Amplifier Research 100S1G6 for Rent, Microwave Amplifier, 0.7 to 6 GHz, 100W

Microwave Amplifier, 0.7 - 6 GHz, 100W

Order #: 100S1G6-RENT3

Mfg #: 100S1G6

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

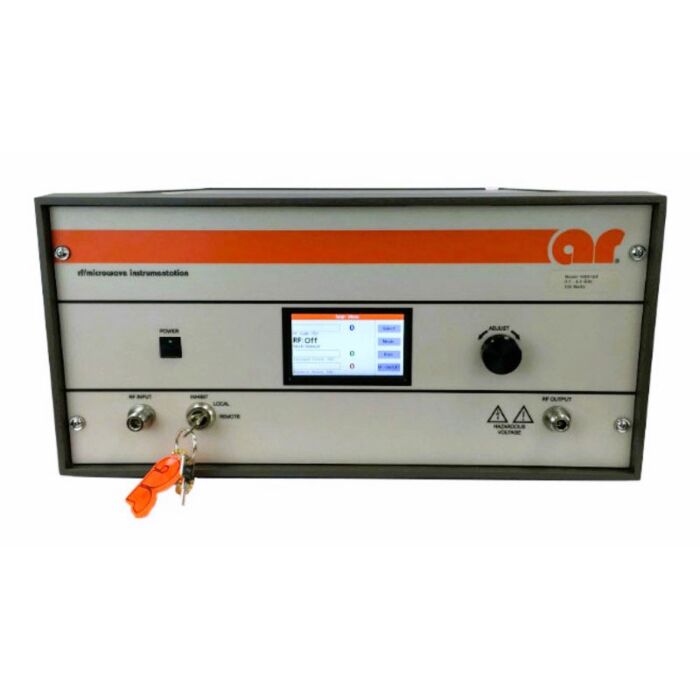

The Amplifier Research 100S1G6 is a self-contained, air-cooled, broadband amplifier designed for applications that require instantaneous bandwidth, high gain, and linearity. It is housed in a stylish cabinet and designed for benchtop use, but can be removed for equipment rack mounting.

  • Features:
    • Provides a minimum of 100 watts of RF power when used with a sweep generator
    • Front panel gain control provides convenience of setting desired output level
    • RF input leveling circuit:
      • Protects the amplifier from RF input overdrive
      • Controls RF input level to the RF amplifier first stage when RF input level is increased above 0 dBm
    • RF amplifier stages are protected from over-temperature, due to cooling blockage or fan failure, by removing the DC voltage to them
    • Digital Display on front panel indicates operate status and fault conditions when over-temperature or power supply fault occurs
    • Control functions and status indications are available remotely in GPIB/IEEE format, RS-232 hardwire and fiber optic, USB and Ethernet
    • Bus interface connector on back panel
    • Local/Remote switch on front panel assures positive control of local or remote operation
    • Low level of spurious signals and linearity make it ideal for these uses:
      • As a driver amplifier in testing wireless and communication components and subsystems
      • As a test instrument covering mutiple frequency bands
      • For communication technologies including CDMA, W-CDMA, TDMA, GSM, etc.
  • Specifications:
    • Rated output power:  100 watts minimum
    • Input for rated output:  1.0 milliwatt maximum
    • Power output @ 3dB compression:
      • Nominal:  120 watts
      • Minimum:  100 watts
    • Power output @ 1dB compression:
      • Nominal:  100 watts
      • Minimum:  80 watts
    • Small Signal Gain Flatness:
      • typical:  ±1.5 dB
      • maximum:  ±2.5 dB
    • Frequency response:  0.7 - 6 GHz instantaneously
    • Gain (at maximum setting):  52 dB minimum
    • Gain adjustment (continuous range):  10 dB minimum (4096 steps remote)
    • Input impedance:  50 ohms, VSWR 2.0:1 maximum
    • Output impedance:  50 ohms nominal
    • Mismatch tolerance:
      • 100% of rated power without foldback
      • Will operate without damage or oscillation with any magnitude and phase of source and load impedance
    • Modulation capability:  Will faithfully reproduce AM, FM, or pulse modulation appearing on the input signal
    • Third order intercept point:  58 dBm typical
    • Noise figure:  10 dB typical
    • Harmonic distortion:  Minus 20 dBc maximum at 80 watts
    • Spurious:  Minus 73 dBc typical
    • Phase linearity:  ±1.0 deg / 100 MHz typical
    • Primary power (selected automatically):
      • 90-132, 180-264 VAC
      • 50/60 Hz, single phase
      • 1100 watts maximum
    • Connectors:
      • RF:  Type N female
      • Remote Interfaces:
        • IEEE-488:  24 pin
        • RS-232:  9 pin Subminiature D
        • RS-232 (fiber-optic):  Type ST
        • USB 2.0:  Type B
        • Ethernet:  RJ-45
    • Safety Interlock:  15 pin Subminiature D
    • Cooling:  Forced air (self contained fans)
