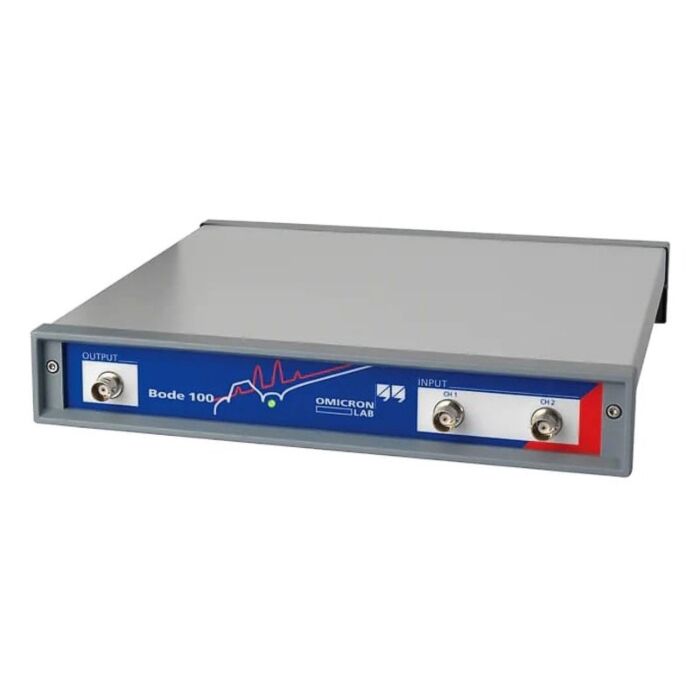

Omicron BODE 100 for Rent, Vector Network Analyzer, 1Hz to 40MHz

Product Highlights

With the multifunctional OMICRON LAB Bode 100 Vector Network Analyzer you'll see an exact picture of your electronic circuits and components in a frequency range from 1 Hz to 40 MHz. The multifunctional Bode 100 Vector Network Analyzer system is comprised of a flexible hardware design and the Bode Analyzer Suite for Windows. Because of its outstanding price-performance ratio the system is ideal for industrial applications, as well as, research and educational labs. The Bode 100 is not only a state of the art Vector Network Analyzer, it also works as:

• Frequency Response Analyzer
• Impedance Meter
• Gain Phase Meter
• Sine Wave Generator

Withe BODE 100, you can easily measure and analyze:

• Complex gain
• Complex impedance and admittance
• Reflection coefficient and return loss
• Ultrasonic and piezo electric systems
• Stability of control circuits such as DC/DC converters in power supplies
• Swept S-parameters of electronic circuits
• Group delay characteristics of your DUT
• Frequency dependent impedance of high Q-circuits like oscillating crystals
• Influence of termination on amplifiers or filters
• Reflection and adaptation of antennas

Data transfer and reporting is so easy.

• A simple click of a button and the Bode 100 provides you with a print report containing all relevant information.
• Generate reports in own your style - simply paste measurement results, charts and equipment settings into your documents by using the Bode 100's extended copy to clipboard functionality.
• Process your measurement results with your favorite tool including Excel by exporting all measurement values into a csv file.
• Save your entire equipment set-up (including measurement values). Load saved set-ups to simply reuse your measurements. Share stored set-ups with you colleagues and analyze the data offline on any PC.

Reduce your workload - automate your measurements.

• Use OLE compatible controllers such as VBA (e.g. Excel), LabVIEW, MATLAB
• Program your own applications with languages like VB2005, C#, Visual C++

Specifications of the OMICRON LAB BODE 100 include:

• Wave form: Sinusoidal signal
• Frequency range
• 10 Hz to 40 MHz (standard frequency range)*
• 1 Hz to 40 MHz (extended frequency range)*
• *frequency ranges software switchable
• Signal Level -27dBm to 13dBm 0.01VRMS to 1VRMS (at 50 Ohm load)
• Accuracy of the source level (23C +/-5C)
• +/-0.3 dB (1Hz to 1MHz)
• +/-0.6 dB (1MHz to 40 MHz)
• Frequency response of the source level 1Hz to 40MHz: +/-0.3dB (referred to 100kHz)
• Frequency accuracy (23C +/-5C):
• +/-15ppm (
• +/-25ppm (
• Source impedance: 50 Ohm
• Return loss (1Hz to 40MHz) > 28dB (VSWR < 1.09)
• Spurious signals < -55dBc (typical)
• Harmonics < -55dBc (typical)
• Connector: BNC
