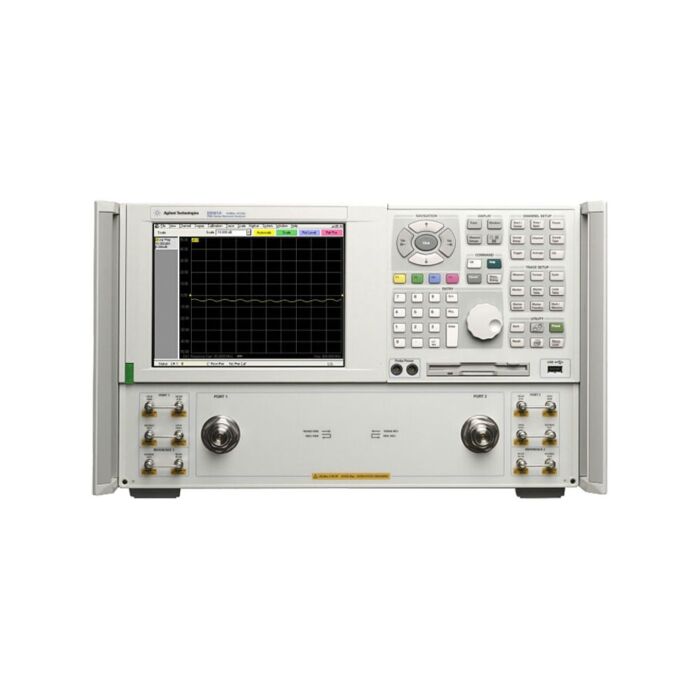

Keysight / Agilent E8361A for Rent, PNA Network Analyzer, 10 MHz to 67 GHz

Product Highlights

The Agilent E8361A Network Analyzer provides general purpose network analysis with optional software and / or hardware to customize for your application, such as multiport, pulsed-RF, etc.

The Agilent E8361A Network Analyzer can display up to 16 windows simultaneously, which can be resized and rearranged, as well as up to 4 active traces and 4 memory traces per window. Formats include: Log or linear magnitude, SWR, phase, group delay, real and imaginary, Smith chart, polar. Ten independent markers per trace including reference marker for delta marker operation, as well as log or linear magnitude, phase, real, imaginary, SWR, delay, R + jX, and G + jB formats. With the Agilent E8361A Network Analyzer you can define test limit lines that appear on the display for go/no go testing Linear, CW (single frequency), power or segment sweep.

Features and specifications of the Agilent E8361A Network Analyzer include:

• 94 dB of dynamic range
• TRL/LRM calibration, on-wafer, in-fixture, waveguide, and antenna measurements
• Mixer conversion loss, return loss, isolation, and absolute group delay
• Amplifier gain compression, harmonic, IMD, and pulsed-RF
