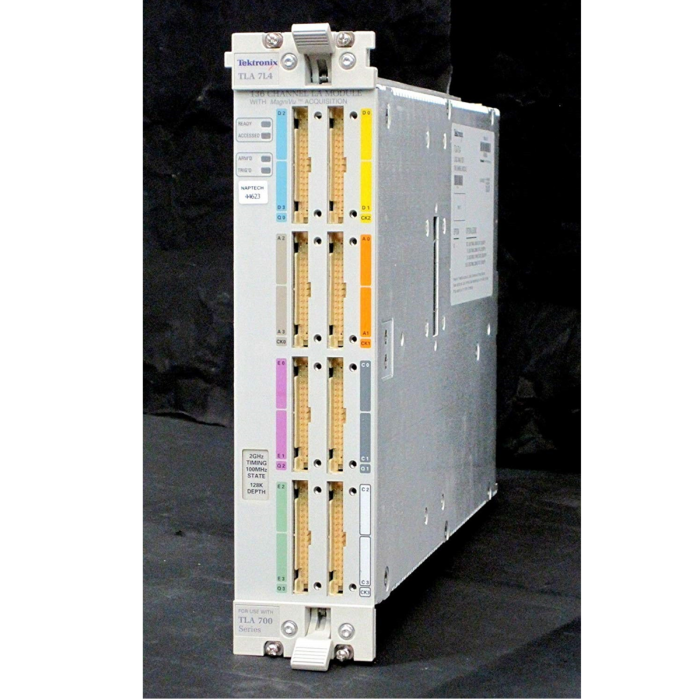

Tektronix TLA 7L4 for Rent, 136 Channel Logic Analyzer Module
136 Channel Logic Analyzer Module
Order #: TLA-7L4-RENT2
Mfg #: TLA 7L4
Call for price
Call for price
Tektronix TLA 7L4 for Rent, 136 Channel Logic Analyzer Module
136 Channel Logic Analyzer Module
Order #: TLA-7L4-RENT2
Mfg #: TLA 7L4
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Availability: Call for Availability
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
L4 136 Channel Logic Analyzer Module Opt 1S has 2GHZ Timing, 200MHZ State, and 32K Depth
The TLA7N4 logic analyzer module offers Tektronix' breakthrough technology for providing high-speed sampling (up to 2 GHz) that dramatically changes the way logic analyzers work and enables them to provide startling new measurement capabilities. The TLA7N4 module offers high-speed state synchronous capture and high-speed timing capture through the same set of probes.
FeaturesApplications
- 136 Channel Logic Analyzer with up to 8 Mb Depth
- Acquisition Technology Provides 2 GHz (500 ps) Timing Resolution to Find Difficult Problems Quickly
- Up to 200 MHz State Acquisition Analysis of Synchronous Digital Circuits
- Simultaneous State and High-speed Timing Analysis through the Same Probe Pinpoints Elusive Faults without Double Probing
- 500 MHz Deep Timing Analysis with up to 8 Mb Per Channel
- Glitch and Setup/Hold Triggering and Display Finds and Displays Elusive Hardware Problems
- Transitional Storage Extends the Signal Analysis Capture Time
- Broad Processor and Bus Support
- Full Range of General-purpose and High-density, Nonintrusive Probes
- Hardware Debug and Verification
- Processor/Bus Debug and Verification
- Embedded Software Integration, Debug, and Verification
