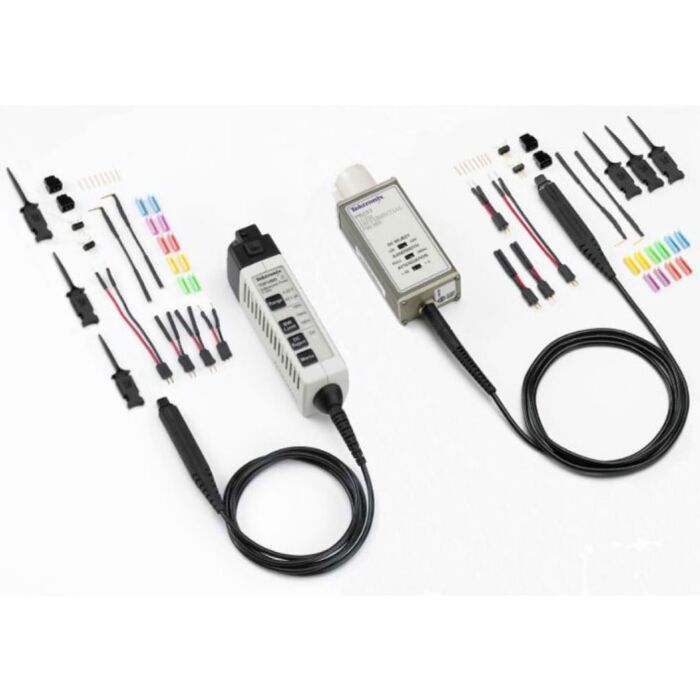

Tektronix THDPO100 for Rent, Differential High Voltage Probe, 100 MHz

A high voltage differential probe is used for measuring the voltage difference between two test points where neither test point is at the ground. High voltage differential probes from Tektronix can be used for signals up to 6000 V. These probes are the best choice for making non-ground referenced, floating or isolated measurements in large part due to their common-mode rejection capability. These products are designed, manufactured, and serviced by Tektronix.

Features

• Attenuation: 100X / 1000X
• Bandwidth: 100 MHz
• Input Impedance: 40 MΩ || 2.5 pF
• Maximum Voltage
• 1000X: ± 6000 V
• 100X: ± 600 V
• Selectable Bandwidth-limiting Filters
• DC Reject
• Small Compact Probe Head for Probing Small Geometry Circuit Elements
• Straight Pin, Square Pin, Solder Down, Variable Pitch Standard Accessories
• Robust Design for Reliability
• Provides Automatic Units Scaling and Readout on the Oscilloscope
