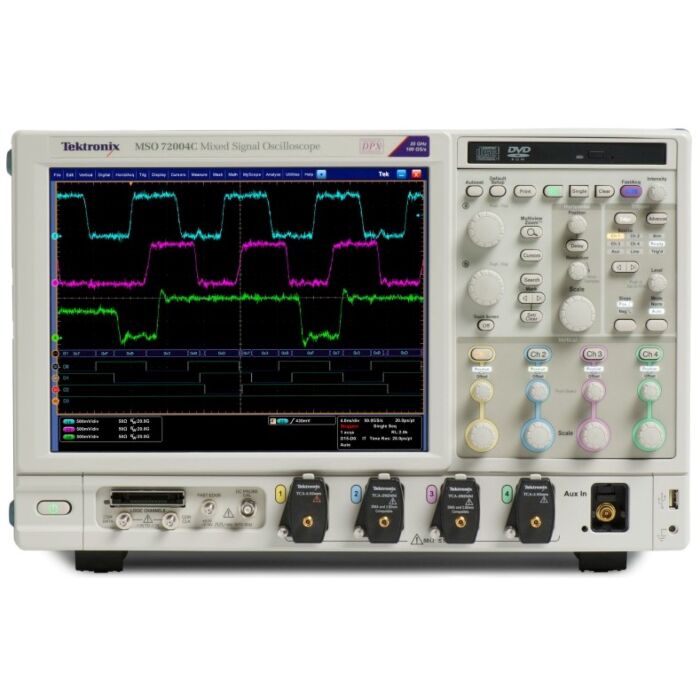

Tektronix MSO72004C for Rent, Mixed Signal Oscilloscope, 20 GHz, 4 + 16 Channel, 100 GS/s

Product Highlights

Engineers rely on an oscilloscope throughout their design cycle, from prototype turn-on to production testing. The Tektronix MSO/DPO70000 Series oscilloscopes' unique capabilities combined with exceptional signal acquisition performance and analysis accelerate your measurement tasks.

Features and Specifications of the Tektronix MSO72004C includes:

• Analog Channels: 4
• Digital Channels: 16
• Analog Bandwidth: 20 GHz
• Hardware Analog: 16 GHz
• Rise Time: 10% to 90%: 18 ps 20% to 80%: 14 ps
• USB 2.0 host port on both the front panel and rear panel for quick and easy data storage, printing, and connecting a USB keyboard
• Integrated 10/100 Ethernet port for network connection and Video Out port to export the oscilloscope display to a monitor or projector
