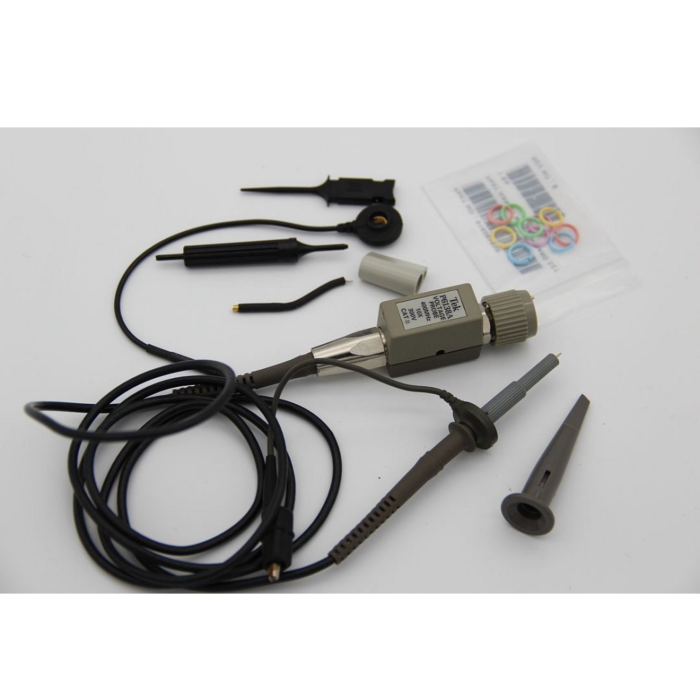

Tektronix P6138A for Rent, 400 MHz Passive Probe, 10X Attenuation, 10.0pF, 10MOhm
400 MHz Passive Probe 10X Attenuation, 10.0pF, 10MOhm
Order #: P6138A-RENT2
Mfg #: P6138A
Call for price
Call for price
Tektronix P6138A for Rent, 400 MHz Passive Probe, 10X Attenuation, 10.0pF, 10MOhm
400 MHz Passive Probe 10X Attenuation, 10.0pF, 10MOhm
Order #: P6138A-RENT2
Mfg #: P6138A
Tektronix P6138A Highlights
The P6138A probe is a compact, high-impedance, 10X passive probe designed for use with Tektronix TDS 400 series digitizing oscillosopes. The P6138A probe meets the requirements of UL3111-1 for ground-referenced applications and is fully compatible with the Tektronix family of 3.5 mm probe accessories.
- Bandwidth (with TDS 460A or TDS 430A): 400 MHz
- Bandwidth (with TDS 420A): 200 MHz
- Attenuation : 10X ±1.0% at DC
- Input Resistance : 10 MΩ ±1.0%
- Input Capacitance : 10.0 pF ± 0.8 pF
- Scope Input Resis : 1 MΩ
- Compensation Range : 12pF to 18pF
- Readout Pin : YES
- Ground Ref : NO
- ID Button : NO
- Max Rated Voltage : 300 VRMS
- Cable Length : 1.3 meters
- Net Weight : 0.24 lb (110 g)
- Scope Compatibility : TDS 400 Series
| Try Before You Buy | |
| Save Time & Money | |
| Weekly and Monthly Rentals | |
| Access Our Large Inventory | |
| Long-term Discounts and Rent-to-Buy Options Available |
How to Rent from Transcat
1. Select Your Rental Product
- Need help selecting a unit? Try using our Product Finder or search our available units
- Can’t find what you are looking for? Is the rental unit you need, not available? Give us a call at 800-828-1470 or our chat feature to speak with one of our dedicated Rental Experts
2. Contact Our Team of Rental Experts
- Contact us here or click below to submit your request for a rental quote and a member of our Rental Team will review the request and will reach out to you very soon
3. Select Your Rental Period & Complete Your Order
- Our weekly period lasts 7 calendar days, while our monthly rental period lasts 28 calendar days
- Provide your form of payment, sign the rental agreement and any other required documents, and we will ship you the unit
