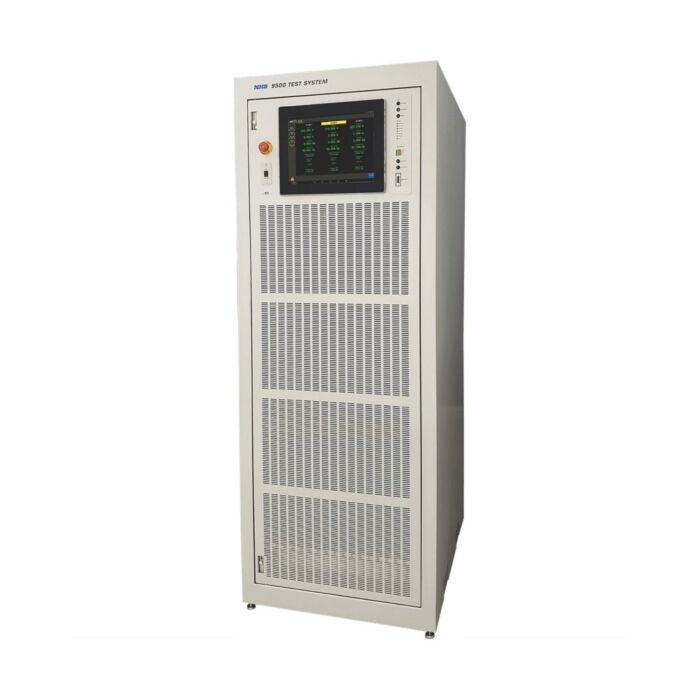

NH Research 9510-100 for Rent, AC Grid Simulator, 4-Quadrant, 100 kW

AC Grid Simulator 4-Quadrant, 100 kW

Order #: 9510-100-RENT2

Mfg #: 9510-100

For Rent

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Call for price

Product Overview

Product Highlights

The NI Regenerative Grid Simulator System offers ultimate flexibility for testing high-power grid-tied applications, with programmable frequency, power scalability up to 1.2 MW, and versatile AC/DC output options. It returns greater than 85 percent of power to the facility.

Features

100 kW power modules, scalable to 1.2 MW
Configured as regenerative AC/DC grid simulator or four-quadrant AC load
Wide true power operating envelope (voltage and current)
Galvanic isolation: output, channel to channel UUT
Programmable three-phase, split-phase, or single-phase
Highest power density with small footprint
Regenerative AC/DC grid simulator and power amplifier optimized for PHIL application
350 Volts
For IEEE 1547, IEC 62116, IEC 61000-4-11 & more!
50kW, 75kW, 100kW power modules
Modular & scalable AC power from 100kW to 1.2MW
AC Load option: Modules can be configured as Regenerative AC/DC Grid Simulator or 4-Q AC Load
Multiple phase and DC capability covers all utility source and load requirements
Programmable three-phase, split-phase, or single phase
Powerful waveform synthesizer combined with high-resolution digitizer covers extensive test and evaluation requirements.
Ideal for Regulation Testing Standards: UL 1741SA, IEEE 1547, IEC 62116, IEC 61000-4-11(pre-compliance), 4-13, 4-14, 4-28, etc.

The NH Research 9510 is a regenerative grid simulator that delivers modular & scalable power from 50kW up to 1.2MW. NHR 9510 grid simulators lead the industry in grid-tied test applications like solar PV, V2G, and energy storage systems, and feature a built-in power amplifier mode for Power Hardware in the Loop (PHIL). A regenerative AC/DC grid simulation system that can also be reconfigured as a 4-Q AC load, the NH Research 9510 features 50kW, 75kW, and 100kW power modules and is optimized for PHIL applications. The NH Research 9510 grid simulator offers programmable single, split, and three-phase operation; this, combined with its DC test capabilities, covers all utility source and load requirements. NHR 9510 simulators are ideal for fulfilling IEEE 1547, IEC 62116, IEC 61000-4-11(pre-compliance), 4-13, 4-14, 4-28, UL 1741SA, and more regulation test standards.

Specifications

Model Number	9510-50	9510-75	9510-100	9510-200	9510-300	9510-400	9510-500	9510-1000	9510-1200
Description	50kW	75kW	100kW	(Only 100kW cabinet can support parallel expansion up to 1.2MW³)
AC Output Ratings
Operating Modes	4-Quadrant with Programmable Voltage (CV), Power Amplifier (PHIL), Optional AC Load
Output Configurations	Independent set per channel 3x 1Φ (AC or DC), 2Φ + 1Φ (AC or DC), or 3Φ AC outputs
Power, Max (1Φ or 3Φ)	50kW/ 118kVA	75kW/ 177kVA	100kW/ 236kVA	200kW/ 472kVA	300kW/ 708kVA	400kW/ 945kVA	500kW/ 1181kVA	1000kW/ 2362kVA	1200kW/ 2835kVA
Current Ranges (RMS per Φ)	25, 112.5 A	650, 168 A	50, 225 A	100, 450 A	150, 675 A	200, 900 A	250, 1125 A	500, 2250 A	600, 2700 A
Current Ranges (RMS 1Φ Mode)	75, 337.5A	150, 506A	150, 675A	300, 1350A	450, 2025A	7600, 2700A	750, 3375A	1500, 6750A	1800, 8100A
Frequency	30 – 120Hz (10 mHz resolution)
Voltage Ranges	10 - 175, 10 - 350VRMS L-N (Split Phase 10-125, 20-250V Max)
Voltage Accuracy	± 0.1% F.S.
Programming Resolution	0.01V
Load Regulation	± 0.02%
Distortion (THD)¹	0.45% (Typical) 0.65% (Max) <70Hz no load to full load ; 0.6% (Typical) 0.85% (Max) >70Hz no load to full load
Slew Rate	1V/μS (10% to 90% measured at 90 degree turn-on into resistive load)
Waveforms	Sine, n-Step Sine, Triangle, Clipped-Sine, Arbitrary (user defined)
Phase Angle Control	0 to 359 degrees/1 degree resolution
DC Output Ratings
Operating Modes	DC Constant Voltage (CV), Constant Current (CC), Constant Power (CP), Power Amplifier (PHIL), Optional DC Load
Power Max (1ch or 3ch)	50 kW	75 kW	100 kW	200 kW	300 kW	400 kW	500 kW	1000 kW	1200 kW
Current Ranges (Per Ch.)	25, 100A	50, 150A	50, 200A	100, 400A	150, 600A	200, 800A	250, 1000A	500, 2000A	600, 2400A
Current Ranges (1 Ch.)	75, 300A	150, 450A	150, 600A	300, 1200A	450, 2400A	600, 2400A	750, 3000A	1500, 6000A	1800, 7200A
Voltage Ranges	10 - 200, 10 - 400 VDC
Ripple	<400mV RMS (into resistive load)
Power Amplifier Mode
Control Method²	Analog Input ±10V PK-PK amplified to ±247.5V PK-PK (low range) and ±495V PK-PK (high range)
Latency (input-output)	50 uS typical
AC & DC Measurements
Peak Voltage	406V / 724V RMS
Accuracy	0.1% Reading + 0.1% F.S. (AC RMS or DC)
Resolution	0.005% F.S.
Peak Current (per Ch.)	167, 500A per channel
Accuracy	0.1% Reading + 0.1% F.S. (AC RMS or DC)
Resolution	0.005% F.S.
Peak Power	575V / 1050V Peak
Accuracy (kW or kVA)	0.1% Reading + 0.1% F.S. (AC RMS or DC)
Resolution	0.005% F.S.
Add'l Measurements	Energy (Ah, kWh, kVAh), AC Crest Factor, AC Power Factor, True Power (P), Reactive Power (Q), Waveform Capture
Physical
Connectors	2 x ½”inch stud terminals per channel (Total of six) + Ground
Cabinet Dimensions (HxWxD)	78” x 28” x 39″ / 1980mm x 712mm x 990mm
Cabinet Weight	1000lbs/454kg for 50kW cabinet; 1200lbs/545kg (for 75kW and 100kW cabinet)
Operating Temperature	5 - 35°C (up to 95% RH non-condensing)
¹ Refer to the gain / frequency graph , ² THD is tested based on output 480VL-L (277 VL-N) with resistive load, ³ Only 100kW cabinet can support parallel expansion; 50kW for standalone operation only.
* The above specifications show typical configurations & subject to change. See data sheet for full product specifications. Contact NH Research, Inc. for further information.
