Order #: AQ6375E-RENT3
Mfg #: AQ6375E

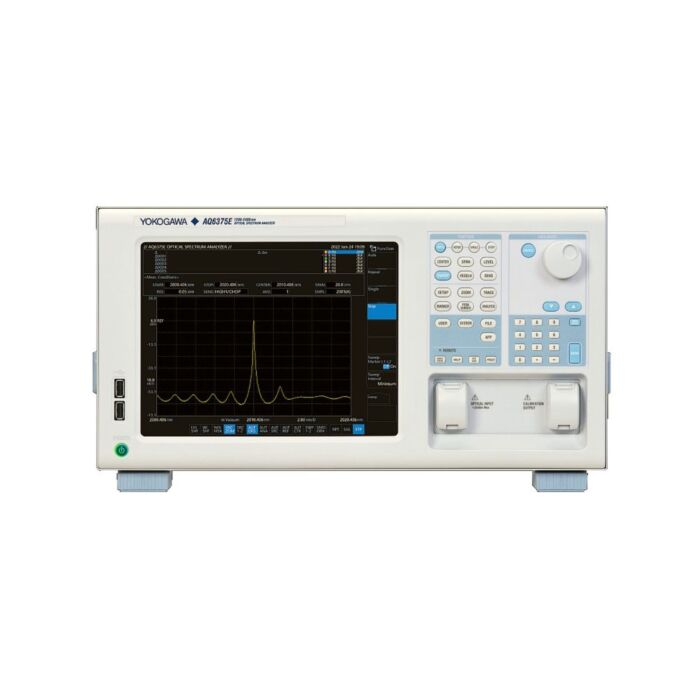

Yokogawa AQ6375E for Rent, Optical Spectrum Analyzer, up to 2500 nm, +20 dBm to -70 dBm
Order #: AQ6375E-RENT3
Mfg #: AQ6375E
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights
The Yokogawa AQ6375E can quickly measure optical characteristics of devices, such as LD, LED light sources, and optical amplifiers. It also has a touch screen and a zoom feature to make it easier to use. Due to the diffractive technology used, the monochromator in some circumstances could generate high order diffracted light, which appears at wavelengths equal to the integral multiple of input wavelengths. By cutting incoming light below 1150 nm with the built-in filter, the AQ6375E drastically reduces the influence of high order diffracted light on the measurement. Thus, the measured data are always reliable and replicate the real signal under test.
The AQ6375E covers not only the wavelength span used in communications, but also the 2um region which is used for environmental sensing, medical, biology and industrial applications. It can measure optical power from +20dBm down to -70dBm thanks to its high-dynamic and very low noise components and circuits used for photo detection. This enables precise measurements of both high power and low power sources. The AQ6375E uses a double-pass monochromator structure to achieve high wavelength resolution (0.05 nm) and wide close-in dynamic range (55 dB). Thus, closely allocated signals and noise can be separately measured.
The AQ6375E covers not only the wavelength span used in communications, but also the 2um region which is used for environmental sensing, medical, biology and industrial applications. It can measure optical power from +20dBm down to -70dBm thanks to its high-dynamic and very low noise components and circuits used for photo detection. This enables precise measurements of both high power and low power sources. The AQ6375E uses a double-pass monochromator structure to achieve high wavelength resolution (0.05 nm) and wide close-in dynamic range (55 dB). Thus, closely allocated signals and noise can be separately measured.
Specifications for the YOKOGAWA AQ6375E Optical Spectrum Analyzer Include:
Wavelength Range |
1200 to 2400 nm Standard 1000 to 2500 nm Extended (optional) |
Wavelength accuracy | +/- 0.5 nm (Full range) |
Minimum sampling resolution | 0.002 nm |
Polarization dependence | +/-0.1 dB (1550 nm) |
-
