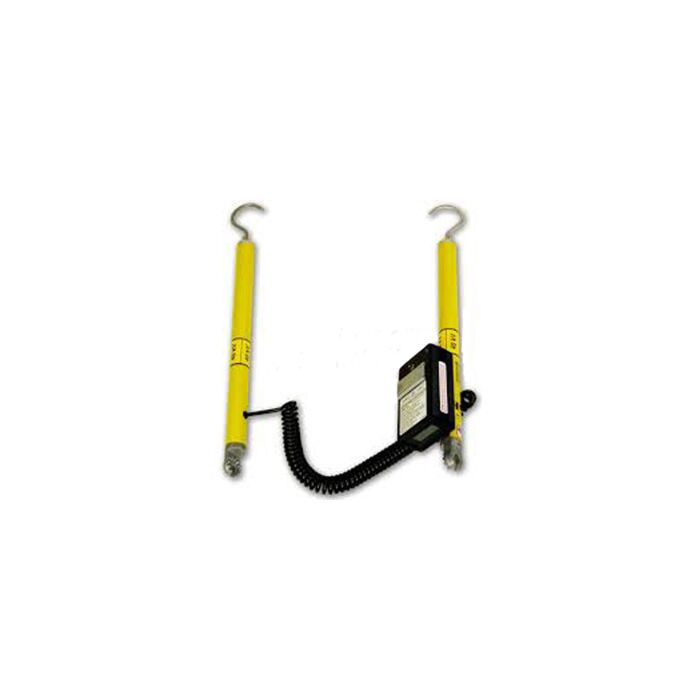

Hastings 6702 for Rent, Digital High Voltage Phasing Meter, 40kV, with Hot Sticks
Digital High Voltage Phasing Meter, 40kV, with Hot Sticks

Order #: 6702-RENT1

Mfg #: 6702-RENT1

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Hastings 6702 for Rent, Digital High Voltage Phasing Meter, 40kV, with Hot Sticks

Digital High Voltage Phasing Meter, 40kV, with Hot Sticks

Order #: 6702-RENT1

Mfg #: 6702-RENT1

Call for price

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
Availability:
In stock
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Instrument for measuring overhead and underground voltages.
  • Three modes of operation AC, Hi-Pot, and DC.
  • 0-40KV meter up to 240KV with resistors.
  • Automatically adjust voltage display to match resistors if used.
  • Hi-Pot mode for testing URD Cable.
  • In Hi-Pot mode bar graph marks the peak voltage while cable is being charged.
  • 0-4KV DC.
  • Large easy to read digital meter and analog bar graph.
  • Meter reads to nearest 100 volts.
  • Meter has lighted background that can be turned on for use in poor light conditions.
  • Meter enclosure made of high quality rugged extruded aluminum.
  • Auto shutdown after 40 minutes if no voltage is detected.
  • Long battery life from three AA’s.
  • Auto self test and battery check during start up.
  • The coiled, self retracting cable is 16” retracted and 10’ when fully extended.
  • Line Voltage Mode: 0 – 40 kV AC 0 – 4 kV DC
  • Operating frequency:50 – 60 Hz AC, DC
  • Batteries: 3 x 1.5V Alkaline or NiMH “AA” Battery Life 24 hrs (backlight on continuously) 14 days (backlight off continuously)
  • Operating Temperature: -40ºF to 122ºF
  • Storage Temperature: -40ºF to 158ºF
  • Weight: 3.8lbs (without probes) 4.0 lbs (with probes)
  • Accuracy: 1% - Accuracy is affected in the field by the proximity of other conductive objects in the vicinity of this Meter. Keeping the cord away from other objects will improve accuracy.
  • Power Supply: Batteries 3 x 1.5V Alkaline or NiMH “AA”
  • Manufacturer Warranty: 1 Year

Unit includes

  • Digital volt meter, conductor hooks, carry case, batteries, and instructions.
