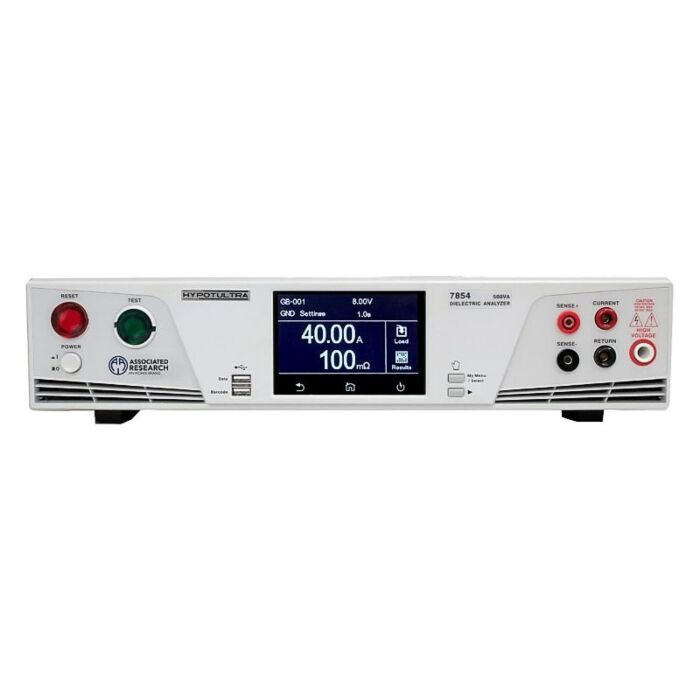

Associated Research 7854 for Rent, HypotULTRA AC/DC Hipot, 500VA, Grnd Bond & Continuity, Insulation Resistance

Product Highlights

The best dielectric analyzer available just got better. The combination of superior testing power and ease of use, with an innovative sleek design that showcases all of our productivity and safety enhancing features. Our touch screen capability allows you to interact with your instrument as intuitively as you would with a smart phone. This simplifies setting up your system and test parameters. You can also easily drag, drop and swap test screen meters to prioritize the ones you want to see. Get even more out of your instrument with direct barcode connection, the all-new feature increases efficiency and production throughput. The addition of on-board data storage takes the pain out of your data transfer with on-board flashdrive support and local data storage. HypotULTRA will improve the productivity and safety of your production line in every single way.

• Test Capabilities:
  • AC Hipot 500VA
  • DC Hipot
  • Ground Bond
  • Ground Continuity
  • Insulation Resistance

• AC Hipot
  • Voltage Output = 0-5000VAC
  • Leakage Current Limits = 0.000-100.00mA
  • Output Frequency = 50/60Hz
• DC Hipot
  • Voltage Output = 0-6000VDC
  • Leakage Current Limits = 0.0000-20,000µA
  • DC Ripple ≤ 4% Ripple RMS at 6 KVDC @ 20mA, Resistive Load
• Ground Bond
  • AC Output Current = 1.00A-40.00A
  • AC Output Voltage = 3.00-8.00 V
  • Resistance Range = 0-600mΩ
• Ground Continuity
  • DC Output Current = 0.001A-1ADC
  • Resistance Range = 0.000-10,000Ω
• Insulation Resistance
  • Voltage Output = 10-6000VDC
  • Resistance Range = 0.1MΩ-50.0GΩ
