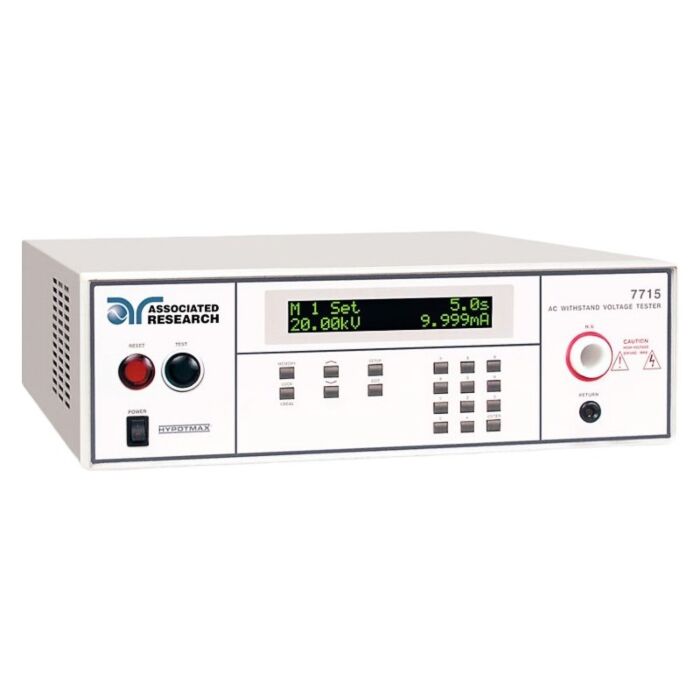

Associated Research 7715 for Rent, HypotMAX 20kVA AC Hipot Tester

Product Highlights

The Associated Research HypotMAX 7715 AC Hipot is designed for automated applications requiring testers with higher voltage output capability. All testers come standard with RS-232 and USB interfaces. GPIB (IEEE-488) and other automation interfaces optional. This easy-to-use bench top tester offers numerous features for safe and efficient testing, including our patented SmartGFI safety circuit. In addition, the 7715 can also be used in tandem with our Autoware control software. The patented SmartGFI is a high speed shut down circuit that provides maximum operator protection. If the circuit detects excessive leakage to ground it shuts down the high voltage in less than 1 millisecond. SmartGFI is automatically activated if the DUT is not grounded. The ability of a circuit to detect the short duration current spikes normally in the range of 10 microseconds which have peak amplitudes in the milliamp range. These high frequency spikes normally appear on the peaks of the output wave prior to catastrophic or destructive arc breakdown which result in complete failure of the insulation.
