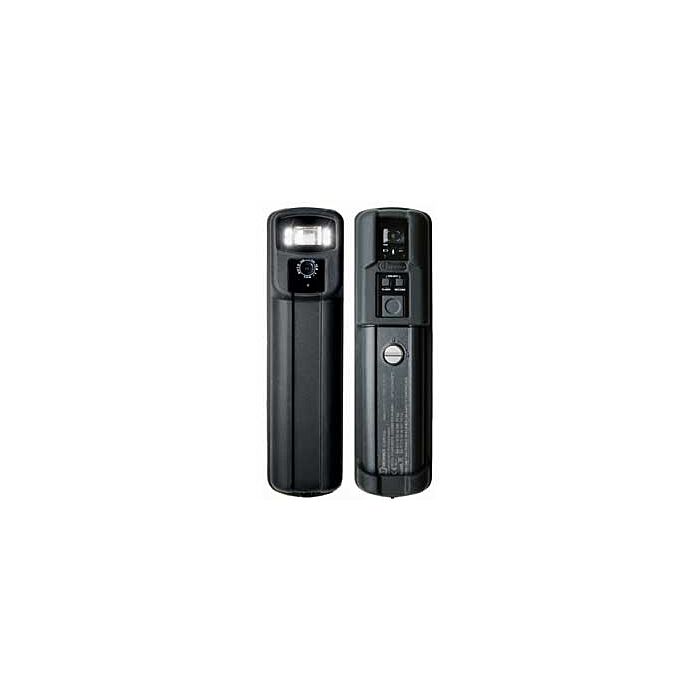

Extronics Ltd ICAM501U for Rent, Intrinsically Safe Digital Camera

Product Highlights

• FM Class I, Division 1, ATEX & IECEx approved
• High Performance Lens
• Powerful LED Flash Array
• Time & Date Stamp on Image
• Voice Record Feature
• Advanced Image Sharpness Analysis
• Certification Number ITS09ATEX26868X, IECEx ITS 09.0027X
• ATEX Certification II 1 G Ex ia IIB T4 Ga, II 2 G Ex ia IIC T4 Gb, -20°C =Ta= +60°C
• I M1 Ex ia I Ma 0°C =Ta= +60°C
• IECEx Certification II 1 G Ex ia IIB T4 Ga, II 2 G Ex ia IIC T4 Gb, -20°C =Ta= +60°C
• Ex ia I Ma 0°C =Ta= +60°C
• FM Certification Intrinsically Safe for Class 1, Division 1, Groups A,B,C,D T4/T3C -20°C=Ta=55/50°C
• (USA and Canada)
• Compliance EMC: EN 55022 1998 class B, EN 55024 1999
• LV: EN 60950 2002
• FCC: FCC: Class A device, compliance through verification route
• Dimensions 132mm x 32mm x 22mm (5.20” x 1.26” x 0.87”)
• IP Rating IP65
• Operating Temperature Group II -20ºC to +60ºC / Group I 0°C to +60°C
• Weight Approx 200g including batteries
• Housing Injection moulded anti static plastic housing
• Relative humidity 95% RH non condensing
• Power 2 x Alkaline AA batteries, refer to ATEX/FM Certificate for details on range of approved batteries. Batteries may not be carried or changed in Group I hazardous areas.
• Memory On board 1Gbyte NAND Flash (holds approx 5,000 JPEG images without any audio recording and additional 960Kbytes per min for audio)
• Image 3.1 Mega-Pixel (2048 x 1536 resolution)
• Lens Fixed focus 1/4” format lens in plastic holder
• Focal Distance 30 cm to infinity
• View Finder Two element optical view finder
• Power Modes Operate and auto power-down (after 3 mins)
• Battery Life Up to 800 shots without flash and up to 150 shots with flash taken one after the other. 310 shots as per the CIPA DC-002 standard (mixed mode shots with and without flash)
• Note it is very difficult to be precise about exact numbers as there are many factors that can influence this such as the ambient temperature, how long the camera is powered up, number of voice recordings made and the number and length of time it is connected to a PC for transferring picture and voice data.
• Connectivity USB 1.1 via mini-USB socket for use in the safe area only. Certified for direct connection to a PC without requiring an external protection barrier
• OS Support PTP imaging device in Windows XP/Vista/7 and most versions of Linux.
• USB firmware upgrade utility for Windows XP/Vista/7 only.
• Flash 4 LED flash giving 131 lux.seconds of energy at 67ms exposure
• Audio recording format wav
• Image format jpeg
• Time and Date Time and date stamping of stored images and filenames
• Time and date set via Picture Transfer Protocol (PTP) automatically

Each Unit Includes

• Safety Instructions
• Two approved AA batteries
• Internal USB lead
• One Lanyard
