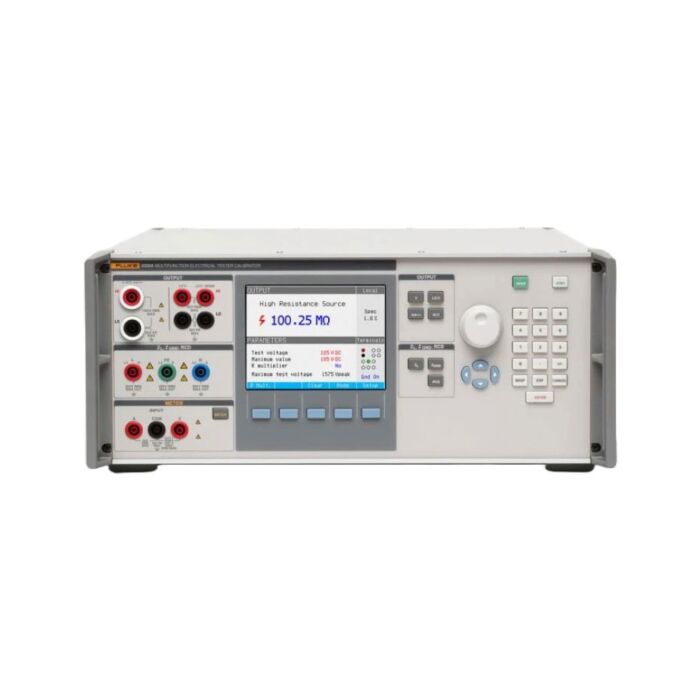

Fluke 5320A for Rent, Multifunction Electrical Tester Calibrator
Order #: 5320A-RENT3
Mfg #: 5320A
Product Highlights
The Fluke 5320A Multifunction Electrical Tester Calibrator combines many functions into a single instrument, replacing discrete resistors, decade boxes and other custom solutions commonly used to calibrate electrical testers. The Fluke 5320A has all the functionality needed to calibrate installation testers with insulation resistance, continuity, loop, RCD and earth resistance test capabilities. It also has all the functionality needed to calibrate PATs, with insulation resistance, ground bond, leakage current, flash voltage and load test capabilities.
The Fluke 5320A simulates a circuit breaker (an RCD/GFCI) to verify and calibrate trip current and trip time, without tripping the installation's current breakers. Simulate a leakage current for direct/ touch, differential and substitute leakage current methods with 4.5 digit resolution from 0.1 mA to 30 mA. The Fluke 5320A lets you choose the method that works best for your test, unlike other calibrators that only offer a single method. The Fluke 5320A provides bestin-class hipot calibration of ac and dc voltage. The built-in 1000 V meter measures voltage and current. The Fluke 5320A is flexible and precise enough to calibrate a wide range of instrumentation.
Specifications for the FLUKE 5320A Multifunction Electrical Tester Calibrator Include:
Voltmeter Range | 0-1000 V |
Ammeter Range | 0-30 A |
Voltmeter Frequency Range | DC, 20 Hz to 2 kHz |
Ammeter Frequency Range | DC, 20 to 400 Hz |
