Druck DPI612-HFP-1000 for Rent, Hydraulic hFlexPro Pressure Calibrator

Product Highlights

These fully self-contained pressure test and calibration systems have interchangeable pressure modules for flexible ranging, generate hydraulic pressure, measure process signals and supply loop power. They provide all the convenience of the Druck DPI 610/615 series with significantly improved generation capabilities, higher accuracy and simplified touch screen operation.

• Pressure Range: 0 to 15,000 gauge/absolute
• Maximum working pressure: 1000 bar / 15,000 psi hydraulic
• Pressure media: De-mineralized water or mineral oil (ISO viscosity grade < 22). 100cc internal reservoir
• Pressure connection: Quick-to-fit connection system with G1/8 female and 1/8 NPT female adaptors
• Size and weight: 350 mm x 170 mm x 170 mm ( 13.7 in x 6.7 in x 6.7 in) excluding accessories 4.7 kg (10.4 lb) including battery and pressure module
• Priming pump, pressure intensifier/fine adjuster, non-return valve, precision release valve

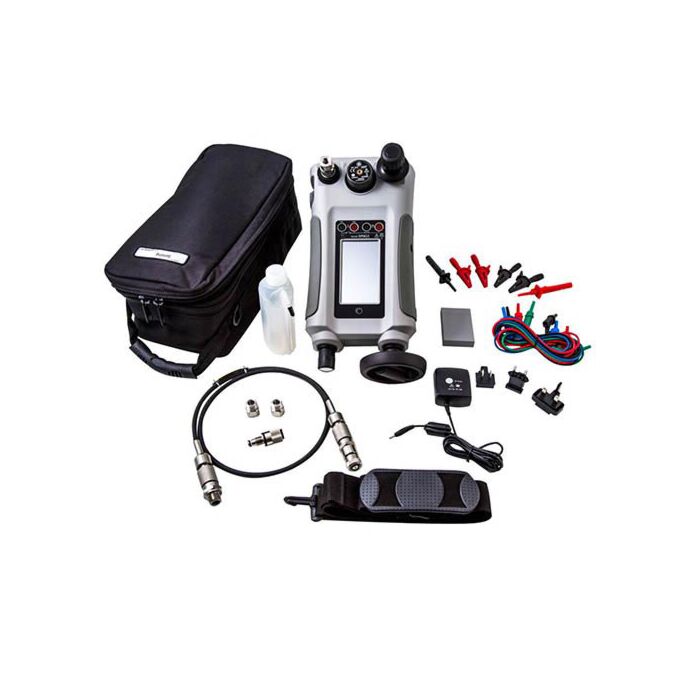

Each Unit Includes

• PM 620 pressure module, 0-15,000 psi
• Rechargeable battery
• Hose kit
• Carry case
• Pressure relief valve
• includes battery charger ( IO620-PSU)
• carrying strap (IO612-STRAP)
• test leads (IO61X-LEADS)
• fluid bottle
• user guide
• calibration certificate
