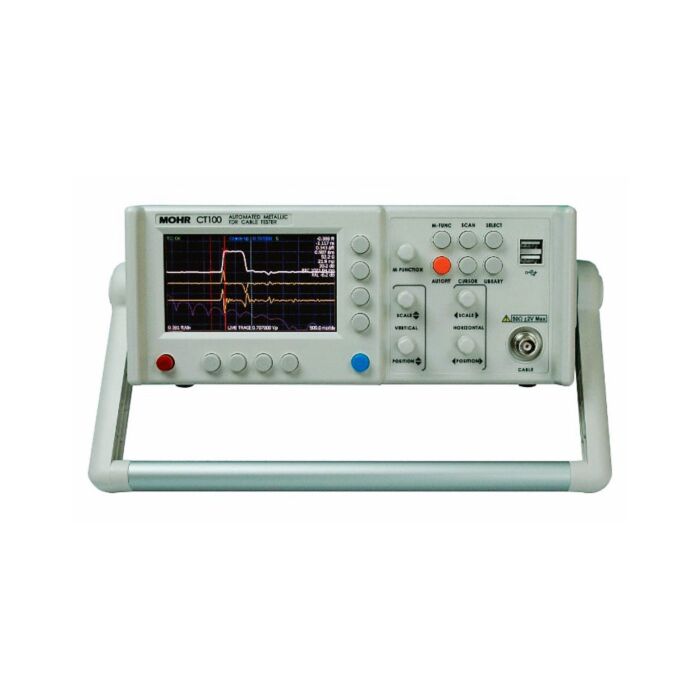

MOHR CT100 for Rent, Metallic TDR Cable Tester
Order #: CT100-RENT3
Mfg #: CT100
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights
The Mohr CT100 is the industry's highest-resolution portable metallic TDR, designed for testing all coaxial and twisted-pair cables and interconnects used in modern microwave/RF and digital systems. It is the only portable instruments that exceed all TDR specifications of the Tektronix 1502C Metallic TDR Cable Tester, while providing next-generation improvements in TDR analysis, data storage, connectivity, and ergonomics.
The Mohr CT100 Series TDRs feature 8-10x sharper spatial resolution and 100-1000x better Distance-to-Fault (DTF) resolution than competing TDR instruments, and have multi-GHz bandwidth similar to competing FDR (Frequency-Domain Reflectometer) instruments with similar or better cable fault sensitivity and orders-of-magnitude better DTF precision.
The Mohr CT100 has a unique combination of fast system risetime, high-resolution timebase, and precision 16-bit impedance measurements, which allow you to identify and correct subtle changes in cable and connector performance before system failure.
Specifications of the Mohr CT100 include:
- Risetime (20-80%): 100ps
- Pulse Amplitude (into 50 Ohm load): 300 mV
- Sequential Sampling Rate: 5-250 kHz
- Sampling Resolution: 16 bits
- TDR Frame Rate: 500 fps
- Horizontal Scale: 0.003 - 200 ft/div (0.001 - 50 m/div)
- Horizontal Range: 0 - 30,000 ft (0 - 9 km)
- Vertical Sale: 0.004 - 500 m/div
- Battery Life: 8 hours
- Battery Recharge: <3
- I/O Options: USB host/client 10/100 Ethernet
- Data Storage: Thousands of Traces
- Network Integration: 10/100 Mb Ethernet
- Display: 4.3" 480x272 backlit color TFT LCD
- TDR Trace Display: Unlimited
- TDR Digital Filtering: smooth, subtract, derivatives, FFT
- Weight: 4.7 lb
Key Features of the Mohr CT100 include:
- Live LAN/WAN/Internet streaming and remote control of any CT100 Series TDR. Leverage real-time engineering oversight from thousands of miles away.
- AutoFit button fits any cable to the screen automatically.
- Two independent cursors simplify differential impedance, return loss, and distance-to-fault measurements.
- Save thousands of TDR traces that you can later zoom in/out on, and compare or subtract from live or previously saved traces.
- Configuration library makes repeat measurements as easy as a press of a button.
- Download your TDR data to a PC and review it later with the included CT Viewer software.
- Bright 4.3" color TFT-LCD display is easy to read in any environment.
- Intuitive multifunction key panels simplify TDR use.
- Lightweight and portable, operates for a full shift without recharging; use is unlimited with external battery packs.
- Integrated 10/100 Ethernet connectivity.
- USB peripherals include mouse, keyboard, flash drive, barcode reader.
-
