Product Highlights

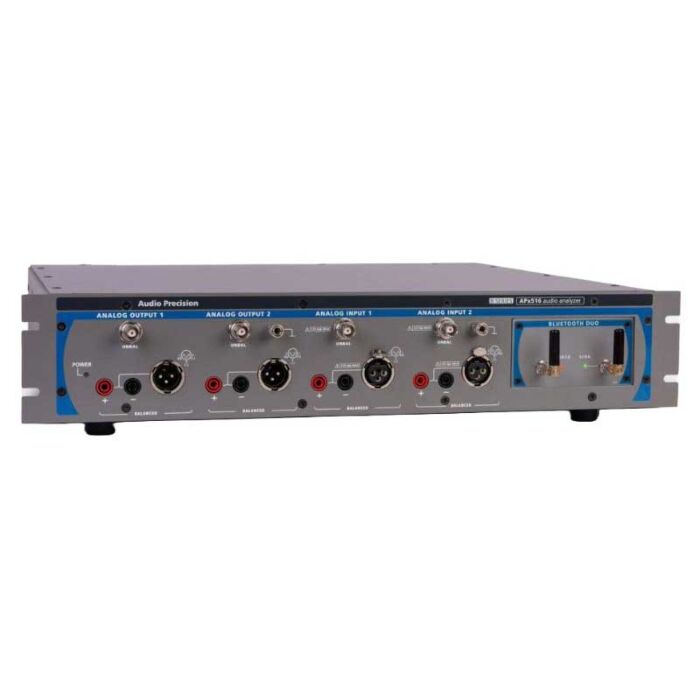

The Audio Precision APX516B is a high-performance audio analyzer optimized for production test. It is a best-in-class instrument for its combination of speed, performance, automation and ease-of-use. The Audio Precision APX516B can make all of the key audio measurements in less than three seconds.
The Audio Precision APx516B Audio Analyzer combines analog and digital audio testing at a price point previously unavailable in the market. Using an Audio Precision analyzer ensures consistency across the entire product development process, especially for extended, distributed, and remote teams, eliminating the discrepancies often seen with makeshift or ad hoc approaches. Despite its low cost, APx516B still has excellent performance, with a typical THD+N of -109 dB, +/- 0.05 dB Amplitude Accuracy, as well as the Single module slot for optional digital audio interface module.
| Sine Frequency Range |
2.0 Hz to 80.1 kHz |
| Flatness (10 Hz - 20 kHz) |
+/-0.0086 dB |
| Frequency Accuracy |
3 ppm |
| Residual Input Noise (20 kHz BW) |
2.0 uV |
