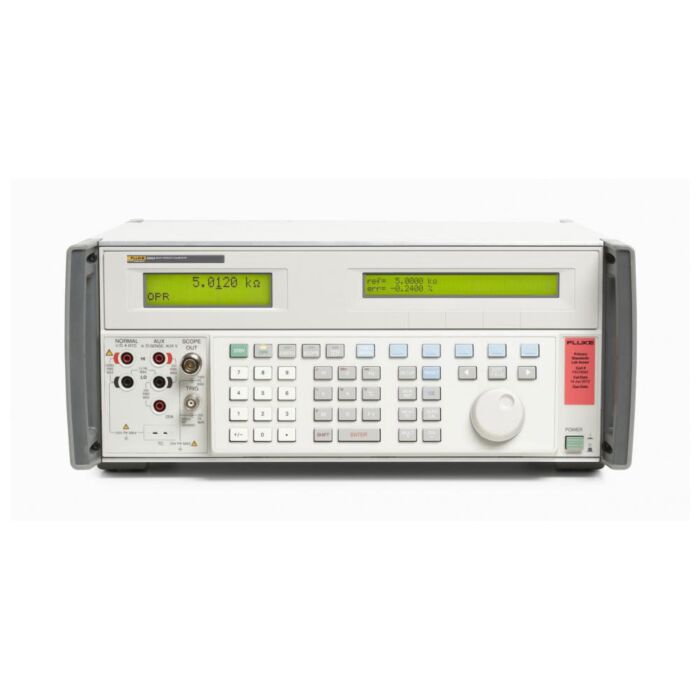

Fluke 5502A for Rent, Multi-Product Calibrator
Order #: 5502A-RENT1
Mfg #: 5502A
Product Highlights
The 5502A Multi-Product Calibrator replaces the 5500A and addresses common workload items like 3.5 and 4.5 digit digital multimeters and more. It comes with internal and external protection features that enable you to transport it easily and perform onsite or mobile calibration. The 5502A can also be fully automated with MET/CAL® Plus Calibration Management Software. It is the ideal calibrator for metrology professionals who need a solution for calibrating low-to-medium accuracy electrical instrumentation.
The 5502A sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, simultaneous voltage outputs or dual voltage and current to simulate dc and ac power with phase control, resistance, capacitance, thermocouples and RTDs. The 5502A can also measure thermocouples and thermocouple simulators. Two options add the capability to calibrate oscilloscopes to either 300 MHz or 600 MHz. Additionally, with the 52120A Transconductance Amplifier and current coils, the 5502A can calibrate instruments at up to 6000 A.
Features
- Calibrates a wide variety of electrical test equipment
- Robust protection circuits prevent costly damage from operator error
- Ergonomically designed carrying handles make the 5502A easy to transport
- Rugged carrying case with built-in handles and wheels and removable front/rear access doors for in-situ calibration in almost any environment
- Current output that extends to 120 A when paired with the 52120A Transconductance Amplifier
| Function | Range / Details |
|---|---|
| Direct volts | 0 to ± 1020 V |
| Direct current | 0 to 20.5 A |
| Alternating volts | 1 mV to 1020 V 10 Hz to 500 kHz |
| Volt*Hertz | 1000 V @ 10 kHz / 330 V @ 100 kHz |
| Alternating current | 29 _A to 20.5 A 10 Hz to 30 kHz |
| Waveforms | Sine, square, triangle, truncated sine |
| Resistance | 0 Ω to 1100 MΩ |
| Capacitance | 220 pF to 110 mF |
| Power (phantom loads) | 20.9 kW |
| Phase control | 0.01 degree |
| Thermocouple (source and measure temperature) | B, C, E, J, K L N R, S, T, U 10 _V/ degree C and 1 mV/ degree C |
| RTD (source temperature) | Pt 385-100 Ω, Pt 3926-100 Ω, Pt 3916-100 Ω, Pt 385-200 Ω, Pt 385-500 Ω, Pt 385-1000 Ω, PtNi 385-120 Ω (Ni120), Cu 427 10 Ω |
| Interfaces | RS-232, IEEE 488 |
| Frequency uncertainty | < 25 ppm |
| Calibration Documentation | 17025 accredited report of calibration included |
| Oscilloscope calibrator (optional) | Levelled sine wave from 5 mV to 5.5 Vpp max, frequencies 50 kHz to 600 kHz; edge rise times of < 300 ps, multiple trigger functions, lowest dc, square wave and timing uncertainty |
| Current boost transconductance amplifier | 0 to 100 A DC, 0 to 120 A AC, DC to 10 kHz, up to 6000 A with accessory current coils |
