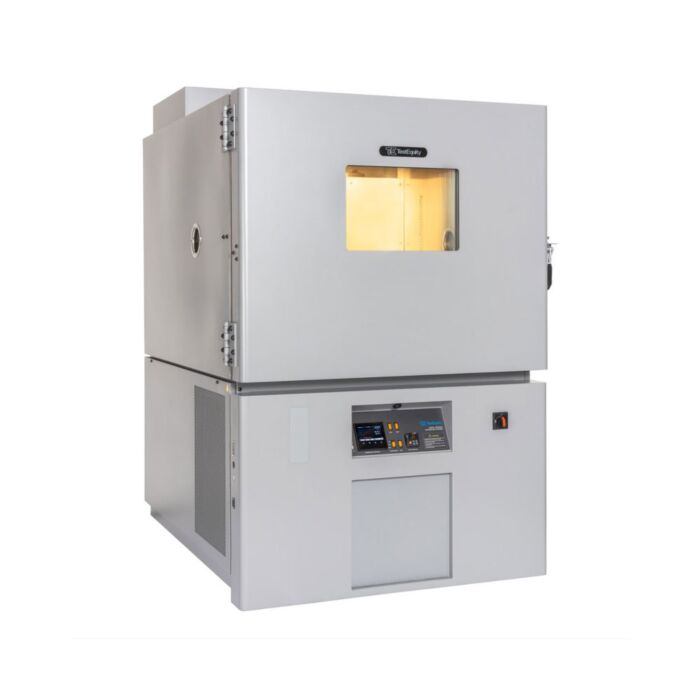

Testequity 1027C for Rent, Temperature Chamber, -73C to 175C, 27 Cu Ft

Product Highlights

The Test Equity 1027C Temperature Chamber allows up to 256 steps to be programmed into as many as 40 namable profiles. The context sensitive information key and guided steps make profile programming fast and easy. A four line backlit LCD displays programming, setup, operating and help information. A large LED readout indicates the actual chamber temperature with 0.1° resolution. Internal logic provides refrigeration compressor control for responsive and reliable performance. The Test Equity 1027C includes two alarms and seven event outputs to control remote devices. RS-232C communications is also included. GPIB, Ethernet and analog retransmit are available as options.

Features and specifications of the 1027C Environmental Chamber include:

• -73C to +175C Temperature Range (opt. to +205C)
• 27 Cu Ft Workspace, 40 W x 32 H x 36.5 D (765 Liters)
• Programmable Temperature Controller
• RS-232 Interface (Opt. GPIB and Ethernet)
• High/Low Limit Control and Alarm
• Viewing Window & Interior Light
• 4" Access Ports on Left & Right Side
• Non-CFC Single Stage Refrigeration

TestEquity Cascade refrigeration systems are capable of achieving workspace temperatures down to -73C. This is required for many ruggedized industrial, automotive and military tests that require low temperatures of typically -40C, -55C or -65C. A cascade system uses two interdependent compressors. One compressor (low-stage) directly cools the workspace. The other compressor (high-stage) cools a heat-exchanger (cascade condenser) to remove heat from the low-stage. If you need to go below -35C, choose the TestEquity 1027C.
