Order #: HA7062D-RENT3
Mfg #: HA7062D

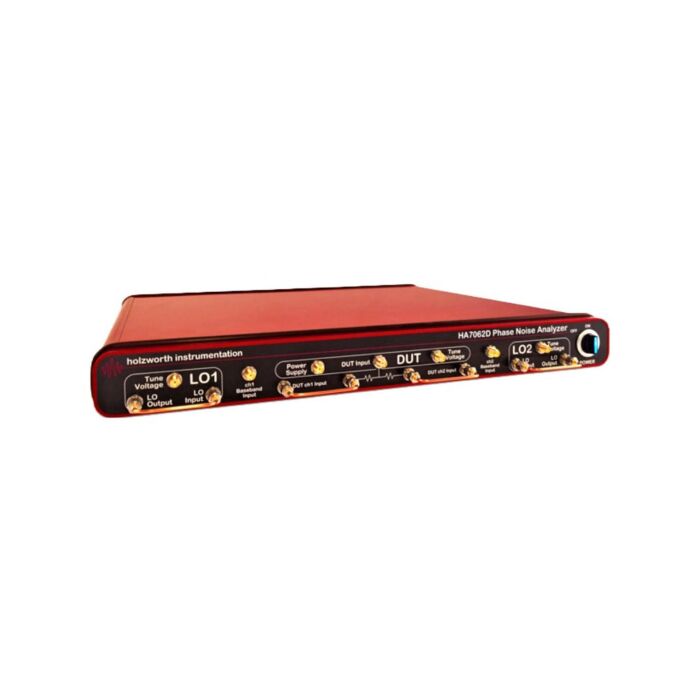

Holzworth HA7062D for Rent, Real Time Phase Noise Analyzer, 10 MHz - 26.6 GHz (opt. 40 GHz)
Order #: HA7062D-RENT3
Mfg #: HA7062D
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Product Highlights
The HA7062D Real Time Phase Noise Analyzer is born from Holzworth's history of industry leading phase noise analyzers with proven accuracy, high reliability, automation and flexibility. The real time engine covers the full measurement bandwidth with extremely fast measurement speeds to reduce product development time and optimizes ATE manufacturing throughput. Holzworth is the only company that has architected the instrument's front end so that the noise floors limits can actually be measured. A key component of the analog front end is a pair of Holzworth HSX Series RF Synthesizers as the test system's internal LOs. These ultra low noise RF sources not only complement the dual core FFT engine to provide one of the most advanced phase noise analyzers available, but they are also made available to the user at the front panel's LO Output ports.
Holzworth's HA7062D has a fully shielded, fan-less 1U chassis eliminates ground loops and troublesome microphonics for uncompromised performance and repeatability. The unique architecture of the HA7062D allows for direct access to key internal modules in order to measure the actual noise floor of the analyzer at any given frequency vs. minimum frequency offset and number of correlations. The HA7062D allows for a high level of measurement flexibility to accommodate different test scenarios by allowing the user access to various system input points. However, only the DUT Input port is necessary for making straight forward absolute phase noise measurements of a frequency source. The highly reliable hardware is capable of additional functionality for custom requirements.
Specifications for the HOLZWORTH HA7062D Real Time Phase Noise Analyzer Include:
Frequency Range | 10 MHz to 26 GHz (40GHz optional) |
Measurement Offset | 0.1Hz to 100MHz |
Noise Floor | < -190 dBc/Hz at 10kHz OS |
-
Keysight 8970B for Rent, Noise Figure Meter, 10MHz to 2.04GHzNoise Figure Meter 10MHz to 2.04GHzCall for price
-
Noisecom UFX7110A for Rent, Noise Generator, 100Hz-1.5Ghz ProgrammableNoise Generator, 100Hz-1.5Ghz ProgrammableCall for price
-

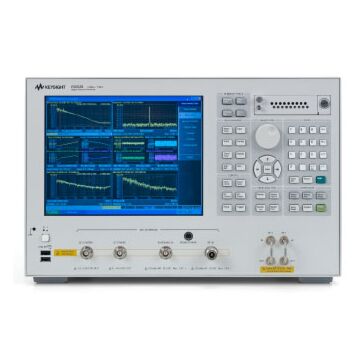

Keysight / Agilent E5052A for Rent, Signal Source Analyzer, 10MHz to 7, 26.5, or 110 GHz
Signal Source Analyzer, 10MHz to 7, 26.5, or 110 GHz
Call for price -
Audio Precision APX586 for Rent, Audio Analyzer, 16 ChannelAudio Analyzer, 16 ChannelCall for price
-
Audio Precision APX525 for Rent, Audio Analyzer, Analog and Digital, 2 ChannelAudio Analyzer, Analog and Digital, 2 ChannelCall for price
-
Keysight / Agilent E5053A for Rent, Microwave Downconverter, 3GHz to 26.5 or 110 GHz
Microwave Downconverter, 3GHz to 26.5 or 110 GHz
Call for price -
Microsemi 53100A for Rent, Phase Noise and Allan Deviation Tester, 1 to 200MHzPhase Noise and Allan Deviation Tester,1 to 200MHzCall for price
-
Stanford Research Systems SR1 for Rent, Audio Analyzer, Dual-Domain, 200 kHzAudio Analyzer, Dual-Domain, 200 kHzCall for price
-
Audio Precision SYS-2722 for Rent, System Two Cascade Audio Analyzer, Dual DomainSystem Two Cascade Audio Analyzer, Dual DomainCall for price
-

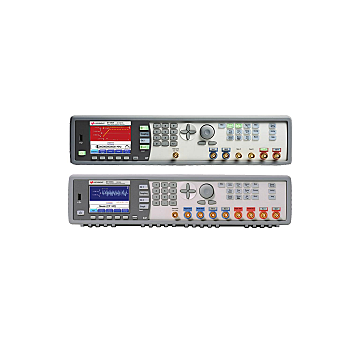

Keysight / Agilent 81160A-002 for Rent, Pulse Function Arbitrary Noise Generator, 2-ChannelPulse Function Arbitrary Noise Generator,2-ChannelCall for price
-
