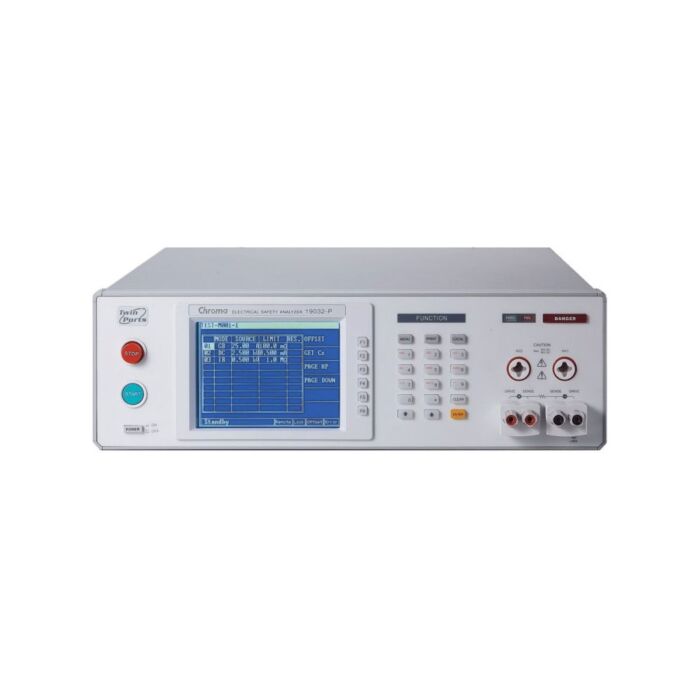

Chroma 19032-P for Rent, Electrical Safety Analyzer

Product Highlights

The Chroma 19032-P is a 5 in 1 Production Safety Analyzer and is the advance version of the standard 19032 model. It can perform AC/DC Hipot, insulation resistance, grounding resistance and dynamic leakage current 5 safety test functions for electronic products. The dynamic leakage current scan device (A190305/A190307) can be connected externally or built in to 19032 Series. It is capable of measuring the complicate safety requirements with easy installation and operation, and is the finest auto safety tester to increase production test efficiency.

The Chroma 19032-P has Twin-Port and OSC functions to minimize the test time greatly; along with the super large screen display and intelligent operation mode, the 19032-P is the most powerful single unit for auto safety tester.

Features

• Floating Output Design meet EN50191
• 500VA Power Rating
• Five instruments in one: AC Hipot, DC Hipot, Insulation Resistance, Ground Bond, and Leakage Current (Option)
• Twin-PortTM function (Patent)
• Programmable output voltage to 5kV AC and 6kV DC
• Insulation resistance to 50GΩ/1000V DC
• Ground bond up to 30A (Option up to 40A / 60A)
• Open/Short check (OSC)
• ARC detection (Flashover)
• Password Protected front panel lockout
• Storage of 50 Tests Setups with 100 Steps per setup
• Optional dynamic leakage current auto scanning (A190305/A190306/A190307/A190308)
• Standard RS-232 Interface
• Standard GB Offset KIT, SCANNER Interface
• Optional GPIB Interface
• Optional Bar-code Scanner
• Optional EST software for test programming, data mining, statistic
• UL, TÜV, CE mark (Model 19032)
• CE mark (Model 19032-P)

Add the Chroma A190308 Hipot/Line Leakage/Probe Scanner (20A) (6000-07) and:

• Plug into 19032 for Hipot, Line Leakage Auto Scan
• Five Different Kinds Human Body RC Network
• Four measurements mode: Normal, Reverse, Single Fault Normal, Single Fault Reverse
• Up to 20A Line Input Current Capability
• Build in A/D and Calibration Data Memory Easy to Install
• Multiple Display Mode Voltage-LC, Amp-LC, VA-LC
• Earth LC, Enclosure LC, Patient LC, and Patient Auxiliary LC Test
