Product Highlights

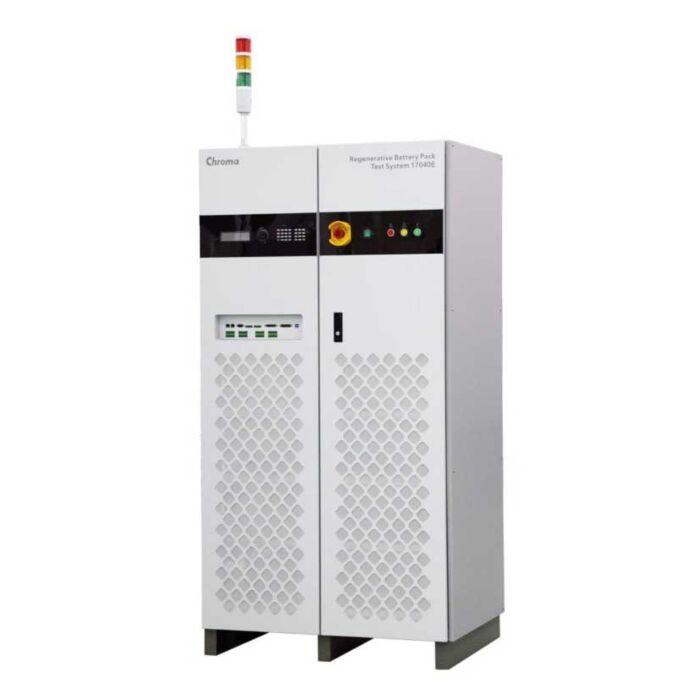

The Chroma 17040E Regenerative Battery Pack Test System is a high-precision system specifically designed for secondary battery module and pack tests. Where traditional equipment discharges waste energy in the form of heat, Chroma 17040E can recycle the electric energy discharged by the battery module back to the grid, thus reducing waste energy and alleviating HVAC requirements. Its bidirectional architecture assures uninterrupted current during the charge and discharge transient state so that the driving conditions can be accurately simulated in line with the ISO, IEC, UL, and GB/T international test standards.
Specifically designed for secondary battery module and pack tests, the Chroma 17040E Regenerative Battery Pack Test System offers ultimate precision, safety, and efficiency. The main features include recycled energy, parallel channels, high power for battery applications, and high accuracy in voltage and current measurement as well as drive cycle simulation. Equipped with Chroma's powerful Battery Pro software, the test system offers flexible test editing functions to perform independent channel tests, and conforms to various requirements for testing secondary battery packs with high safety and stability.
| Voltage Range |
5 - 850V |
| Max. Current / CH |
400A |
| Max Power / CH |
100kW |
| Power Factor |
> 0.95 (at rated power) |
